onsemiDatasheet (PDF)

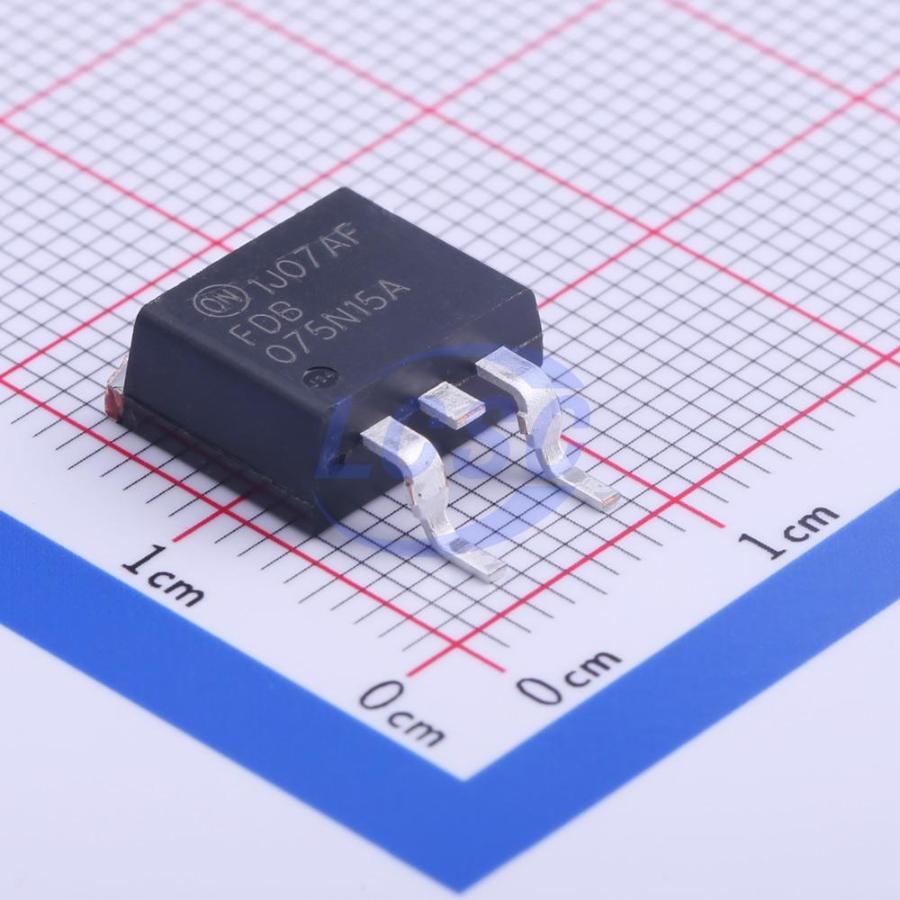

FDB075N15A
N-Channel 150V 130A 333W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 150V 130A D2PAK
- Manufacturer
- onsemi
- Manufacturer part #
- FDB075N15A
- Store part #
- C59864
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
107 in stock
#C59864
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹539.86 | ₹539.86 |
| 10+ | ₹474.76 | ₹4,747.60 |
| 30+ | ₹433.81 | ₹13,014.30 |
| 100+ | ₹362.17 | ₹36,217.00 |
| 500+ | ₹343.23 | ₹1,71,615.00 |
| 800+ | ₹335.16 | ₹2,68,128.00 |
1 × ₹539.86
₹539.86
excl. GST
₹637.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FDB075N15A
₹539.86 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 516pF
- Ciss-Input Capacitance
- 7.35nF
- Pd - Power Dissipation
- 333W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 130A
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 6.25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 77nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.816 g
Overview
This N-Channel MOSFET is produced using advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Applications
- Synchronous Rectification for ATX / Server / Telecom PSU
- Battery Protection Circuit
- Motor Drives and Uninterruptible Power Supplies
- Micro Solar Inverter
Key features
- RDS(on)=6.25 mΩ (Typ.) @ VGS = 10 V, ID = 100 A
- Fast Switching
- Low Gate Charge
- High Performance Trench Technology for Extremely Low RDS(on)
- High Power and Current Handling Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP015N06GHTD#C22385371Siliup · TO-263 | Siliup | TO-263 | 236 | ₹149.55 · 236 in stock | View |
 | CMB073N15#C39840865Cmos · TO-263 | Cmos | TO-263 | 100 | ₹157.41 · 100 in stock | View |
 | SP015N05AGHTD#C48888445Siliup · TO-263 | Siliup | TO-263 | 807 | ₹179.28 · 807 in stock | View |
 | NCEP15T14D#C775786NCE · TO-263-2L | NCE | TO-263-2L | 1,522 | ₹381.98 · 1,522 in stock | View |
 | IRFS4321PBF-VB#C7569027VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 8 | ₹332.60 · 8 in stock | View |
