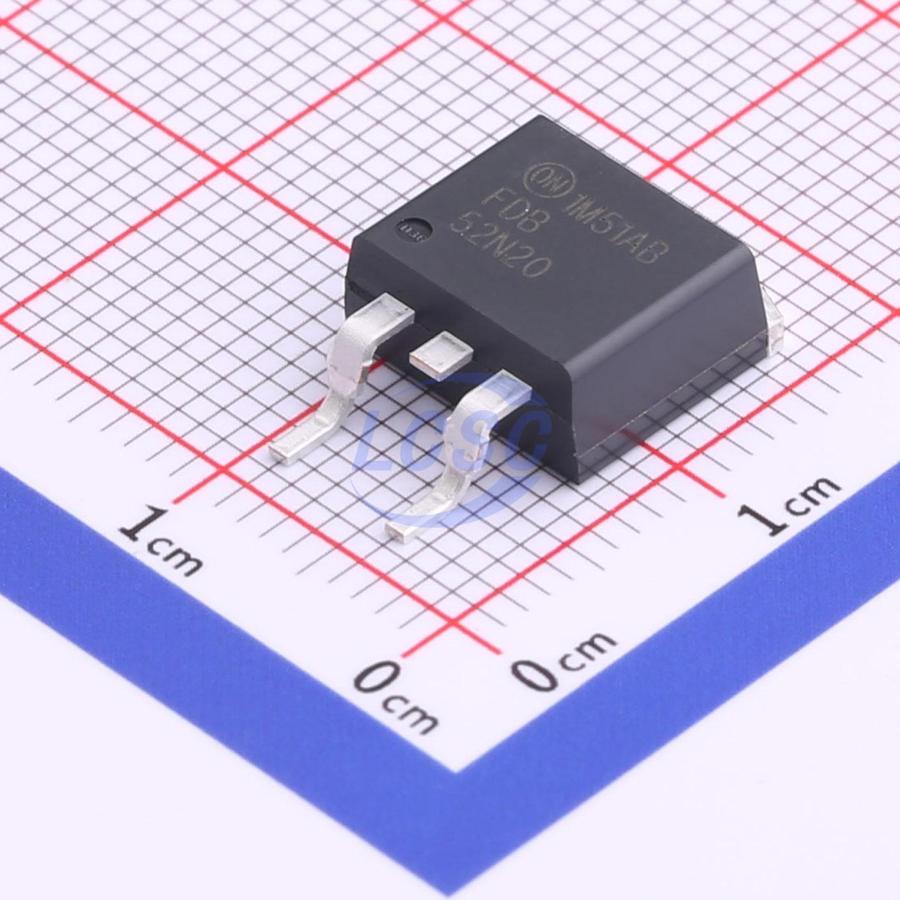

FDB52N20TM
357W 200V 52A 49mΩ@10V 1 N-channel N-Channel D2PAK(TO-263) Single FETs, MOSFETs RoHS
D2PAK(TO-263)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDB52N20TM
- Store part #
- C605011
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,154 in stock
#C605011
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹262.48 | ₹262.48 |
| 10+ | ₹220.19 | ₹2,201.90 |
| 30+ | ₹193.59 | ₹5,807.70 |
| 100+ | ₹166.57 | ₹16,657.00 |
| 500+ | ₹154.35 | ₹77,175.00 |
| 800+ | ₹148.90 | ₹1,19,120.00 |
1 × ₹262.48
₹262.48
excl. GST
₹309.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
FDB52N20TM
₹262.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 540pF
- Ciss-Input Capacitance
- 2.9nF
- Pd - Power Dissipation
- 357W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 52A
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 49mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.015 g
Overview
UniFET™ MOSFETs are a family of high-voltage MOSFETs based on planar stripe and DMOS technology. These MOSFETs are designed to reduce on-resistance, deliver improved switching performance, and achieve higher avalanche energy ratings. This device family is suitable for switched-mode power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supplies, ATX power supplies, and electronic lamp ballasts.
Applications
- Plasma TV
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
Key features
- R DS(on) = 49 mΩ (max) at V GS = 10 V, I D = 26 A
- Low gate charge (typical 49 nC)
- Low C rss (typical 66 pF)
- 100% avalanche tested
