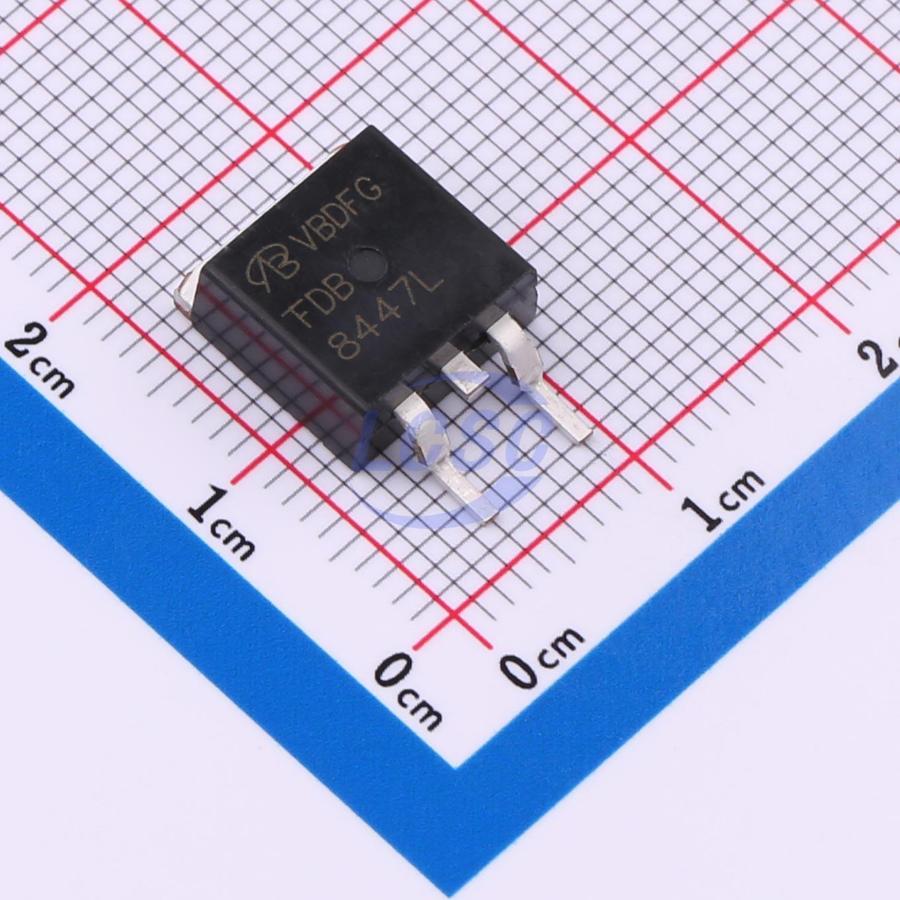

FDB8447L-VB
N-Channel 40V 100A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDB8447L-VB
- Store part #
- C22389170
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C22389170
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.62 | ₹125.62 |
| 10+ | ₹104.72 | ₹1,047.20 |
| 50+ | ₹79.90 | ₹3,995.00 |
| 100+ | ₹69.67 | ₹6,967.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹125.62
₹125.62
excl. GST
₹148.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDB8447L-VB
₹125.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 100A
- Output Capacitance(Coss)
- 1.395nF
- Ciss-Input Capacitance
- 3.33nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 6mΩ@10V;6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 53.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.09 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Thunder Power MOSFET
- Maximum junction temperature 175 °C
- 100% Rg and UIS tested
- Material category: See RoHS for compliance definition
- Standards compliant
- Halogen-free
- Substance-free
- N-channel MOSFET
