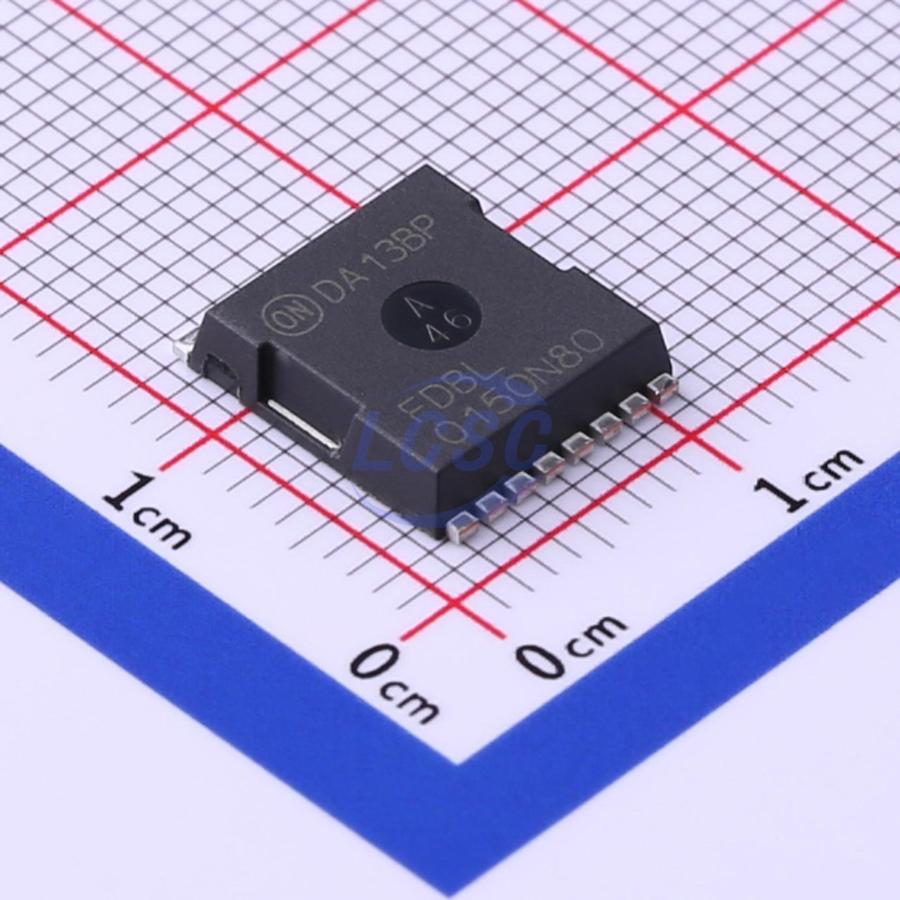

FDBL0150N80
429W 80V 300A 1.4mΩ@10V 1 N-channel N-Channel HPSOF-8 Single FETs, MOSFETs RoHS
HPSOF-8ROHS3 CompliantActive
MOSFET N-CH 80V 300A HPSOF-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDBL0150N80
- Store part #
- C512891
- Package / case
- HPSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
114 in stock
#C512891
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹345.37 | ₹345.37 |
| 10+ | ₹291.95 | ₹2,919.50 |
| 30+ | ₹255.23 | ₹7,656.90 |
| 100+ | ₹220.91 | ₹22,091.00 |
| 500+ | ₹205.49 | ₹1,02,745.00 |
| 1,000+ | ₹198.75 | ₹1,98,750.00 |
1 × ₹345.37
₹345.37
excl. GST
₹407.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FDBL0150N80
₹345.37 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.925nF
- Ciss-Input Capacitance
- 12.8nF
- Pd - Power Dissipation
- 429W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 300A
- Reverse Transfer Capacitance (Crss)
- 139pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 188nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.052 g
Overview
SM240R50C is a power MOSFET utilizing advanced super-junction technology to achieve ultra-low on-resistance and gate charge. Through optimized charge-coupling technology, it delivers high efficiency. These user-friendly devices offer designers the advantages of low EMI and low switching losses.
Applications
- Industrial motor drives
- Industrial power supplies
- Industrial automation
- Battery-powered tools
- Battery protection
- Solar inverters
- UPS and energy inverters
- Energy storage
- Load switches
Key features
- Typical R<sub>DS(on)</sub> = 1.1 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 80 A
- Typical Q<sub>g(tot)</sub> = 172 nC at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 80 A
- Single-pulse avalanche rated
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDBL86361-F085#C900881onsemi · HPSOF-8 | onsemi | HPSOF-8 | 1 | ₹873.75 · 1 in stock | View |
 | FDBL86062-F085#C606101onsemi · HPSOF-8 | onsemi | HPSOF-8 | 48 | ₹952.85 · 48 in stock | View |
 | FDBL0200N100#C900877onsemi · HPSOF-8 | onsemi | HPSOF-8 | On request | ₹1,214.18 · 0 in stock | View |
