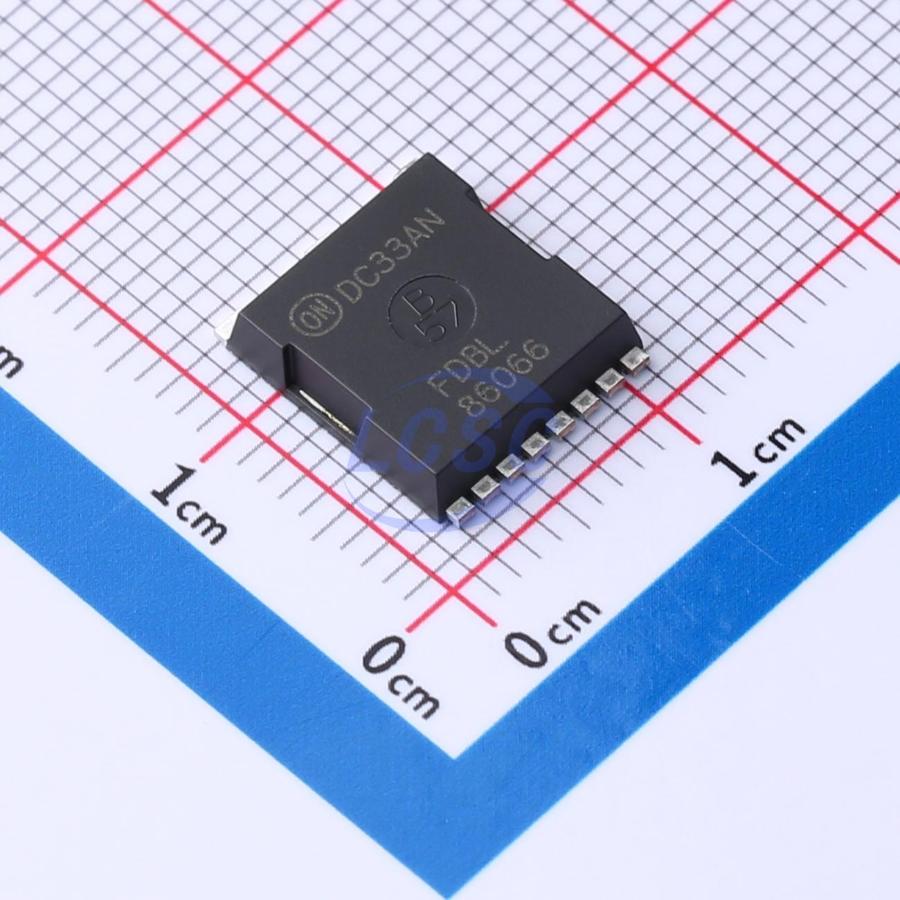

FDBL86066-F085
N-Channel 100V 185A 300W HPSOF-8
HPSOF-8ROHS3 CompliantActive
MOSFET N-CH 100V 185A HPSOF-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDBL86066-F085
- Store part #
- C605017
- Package / case
- HPSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C605017
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹447.43 | ₹447.43 |
| 10+ | ₹437.42 | ₹4,374.20 |
| 30+ | ₹430.69 | ₹12,920.70 |
| 100+ | ₹402.66 | ₹40,266.00 |
1 × ₹447.43
₹447.43
excl. GST
₹527.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
FDBL86066-F085
₹447.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 185A
- Ciss-Input Capacitance
- 3.24nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 4.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.92 g
Overview
Applications
- Automotive Engine Control
- PowerTrain Management
- Solenoid and Motor Drivers
- Electrical Power Steering
- Integrated Starter/Alternator
- Distributed Power Architectures and VRM
- Primary Switch for 12 V Systems
Key features
- Typical RDS(on)=3.3 mΩ at VGS=10 V, ID=80 A
- Typical Qg(tot)=47 nC at VGS=10 V, ID=80 A
- UIS Capability
- Qualified to AEC Q101
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
