onsemiDatasheet (PDF)

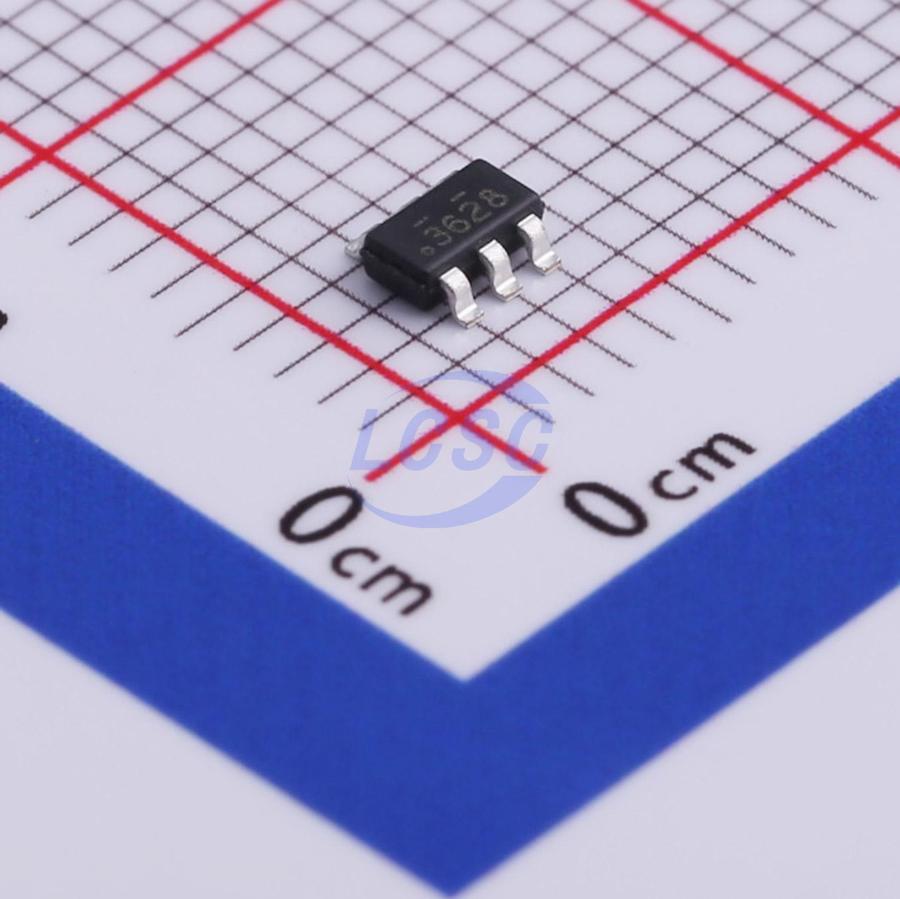

FDC3612
N-Channel 100V 2.6A 1.6W Surface Mount SuperSOT-6
SuperSOT-6ROHS3 CompliantActive
MOSFET N-CH 100V 2.6A SuperSOT-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDC3612
- Store part #
- C111970
- Package / case
- SuperSOT-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
249 in stock
#C111970
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.94 | ₹79.94 |
| 10+ | ₹64.95 | ₹649.50 |
| 30+ | ₹57.56 | ₹1,726.80 |
| 100+ | ₹49.96 | ₹4,996.00 |
| 500+ | ₹45.62 | ₹22,810.00 |
| 1,000+ | ₹43.22 | ₹43,220.00 |
1 × ₹79.94
₹79.94
excl. GST
₹94.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC3612
₹79.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 55pF
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 2.6A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 135mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
This N-channel MOSFET is designed to improve the overall efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. It is optimized for low gate charge, low RDS(ON), and fast switching speed.
Applications
- DC/DC Converter
Key features
- R DS(ON) = 135 mΩ at VGS = 6 V
- 2.6 A, 100 V, R DS(ON) = 125 mΩ at VGS = 10 V
- High-performance trench technology for ultra-low R DS(ON)
- Low gate charge (14 nC typical)
- High power and current handling capability
- Fast switching speed
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDC3612-HF#C489383KEXIN · SOT-23-6 | KEXIN | SOT-23-6 | 665 | ₹29.46 · 665 in stock | View |
 | JY10220X#C5380419JingYang · SOT-23-6L | JingYang | SOT-23-6L | 2,970 | ₹15.65 · 2,970 in stock | View |
 | TPSI3474DV-T1-GE3#C52817299TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,030 | ₹18.79 · 1,030 in stock | View |
 | HXM10H03NSG#C51883369Huixin · SOT-23-6 | Huixin | SOT-23-6 | 2,940 | ₹16.78 · 2,940 in stock | View |
 | FDC3612-TP#C5371019TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,730 | ₹24.25 · 2,730 in stock | View |
