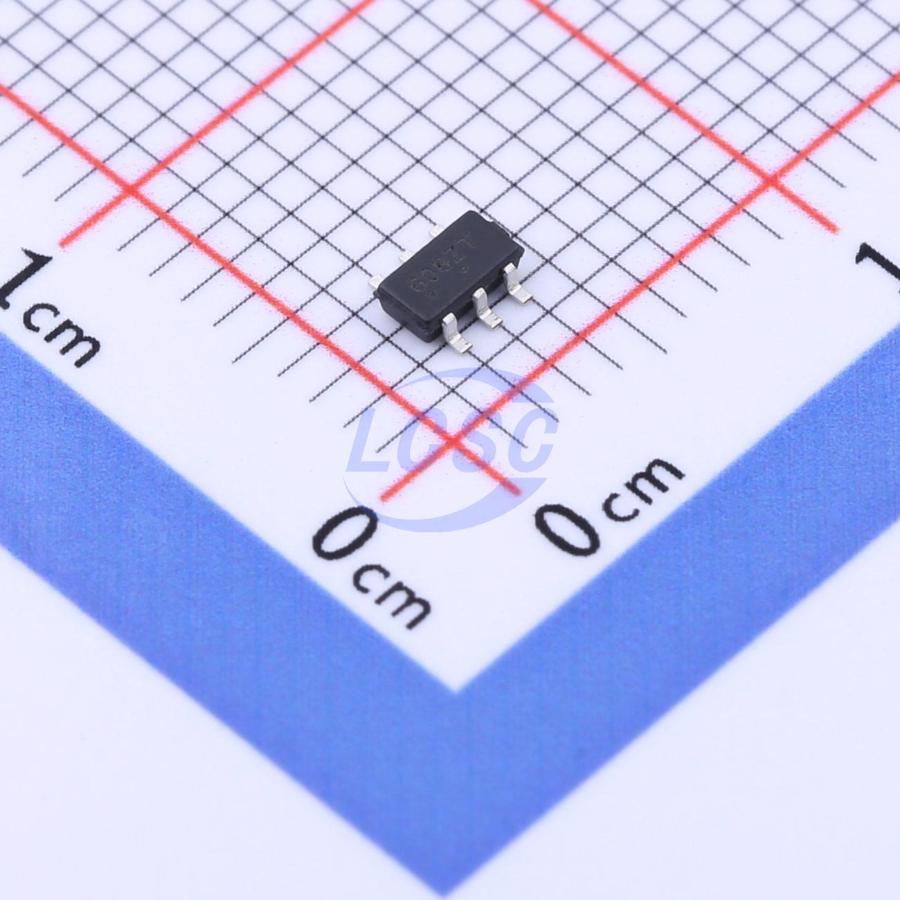

FDC608PZ
P-Channel 20V 5.8A 1.6W Surface Mount SSOT-6
SSOT-6ROHS3 CompliantActive
MOSFET P-CH 20V 5.8A SSOT-6
- Manufacturer
- onsemi
- Manufacturer part #
- FDC608PZ
- Store part #
- C890872
- Package / case
- SSOT-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
108 in stock
#C890872
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.25 | ₹48.25 |
| 10+ | ₹47.16 | ₹471.60 |
| 30+ | ₹46.50 | ₹1,395.00 |
| 100+ | ₹45.86 | ₹4,586.00 |
1 × ₹48.25
₹48.25
excl. GST
₹56.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC608PZ
₹48.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 1.6W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5.8A
- Reverse Transfer Capacitance (Crss)
- 230pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 17nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
This P−Channel 2.5 V specified MOSFET is produced using onsemi’s advanced POWERTRENCH process that has been especially tailored to minimize the on−state resistance and yet maintain low gate charge for superior switching performance. These devices are well suited for battery power applications: load switching and power management, battery power circuits, and dc−dc conversions.
Applications
- battery power applications: load switching and power management
- battery power circuits
- dc−dc conversions
Key features
- –5.8 A, -20 V. RDS(ON)=30 mΩ @ VGS=-4.5 V; RDS(ON)=43 mΩ @ VGS=-2.5 V
- Low Gate Charge
- High Performance Trench Technology for Extremely Low RDS(ON)
- SuperSOT TM-6 Package: Small Footprint (72% Smaller than Standard SO–8) Low Profile (1 mm Thick)
- These Devices are Pb−Free and Halide Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM20V8PLS6#C5197368TECH PUBLIC · SOT-163 | TECH PUBLIC | SOT-163 | 2,735 | ₹28.25 · 2,735 in stock | View |
