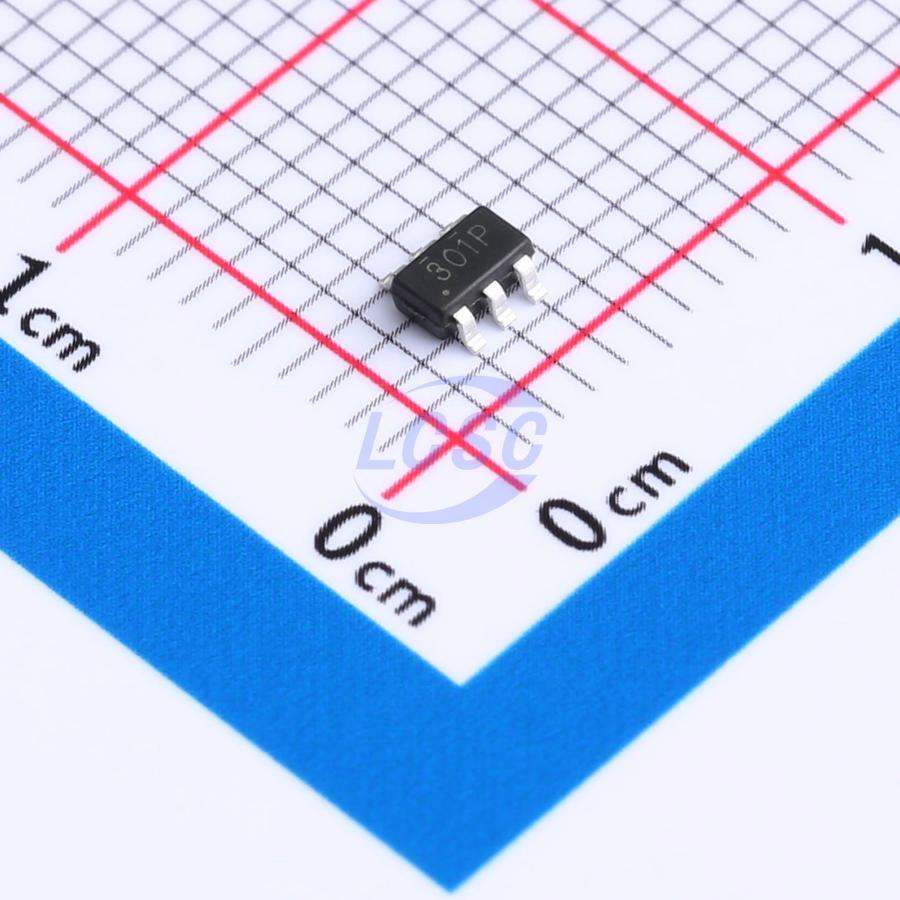

FDC6301N-TP
N-Channel Array 25V 0.8A 0.9W Surface Mount SOT-23-6
SOT-23-6RoHSActive
MOSFET N-CH ARR 25V 0.8A SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDC6301N-TP
- Store part #
- C5246389
- Package / case
- SOT-23-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,530 in stock
#C5246389
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.33 | ₹86.65 |
| 50+ | ₹15.31 | ₹765.50 |
| 150+ | ₹14.43 | ₹2,164.50 |
| 500+ | ₹13.36 | ₹6,680.00 |
| 3,000+ | ₹11.52 | ₹34,560.00 |
| 6,000+ | ₹11.23 | ₹67,380.00 |
5 × ₹17.33
₹86.65
excl. GST
₹102.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDC6301N-TP
₹86.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 20pF
- Ciss-Input Capacitance
- 120pF
- Pd - Power Dissipation
- 900mW
- Drain to Source Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 800mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 800mΩ@1.8V
- Number
- 2 N-Channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Next-generation trench MOSFETs feature a unique structure that combines low on-resistance with fast switching speed, making them ideal for high-efficiency, low-voltage power management applications.
Applications
- Notebook
- LoadSwitch
- Networking
- Hand-held Instruments
Key features
- ESD Protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6301S6#C5246388TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 525 | ₹10.88 · 525 in stock | View |
 | AO6802#C5123888TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 720 | ₹18.35 · 720 in stock | View |
 | TPAO6800#C5246379TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,400 | ₹12.40 · 3,400 in stock | View |
 | SI3932DV#C5123910TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,520 | ₹15.90 · 3,520 in stock | View |
 | FDC3601N-TP#C7603340TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,025 | ₹31.18 · 2,025 in stock | View |
