VBsemi ElecDatasheet (PDF)

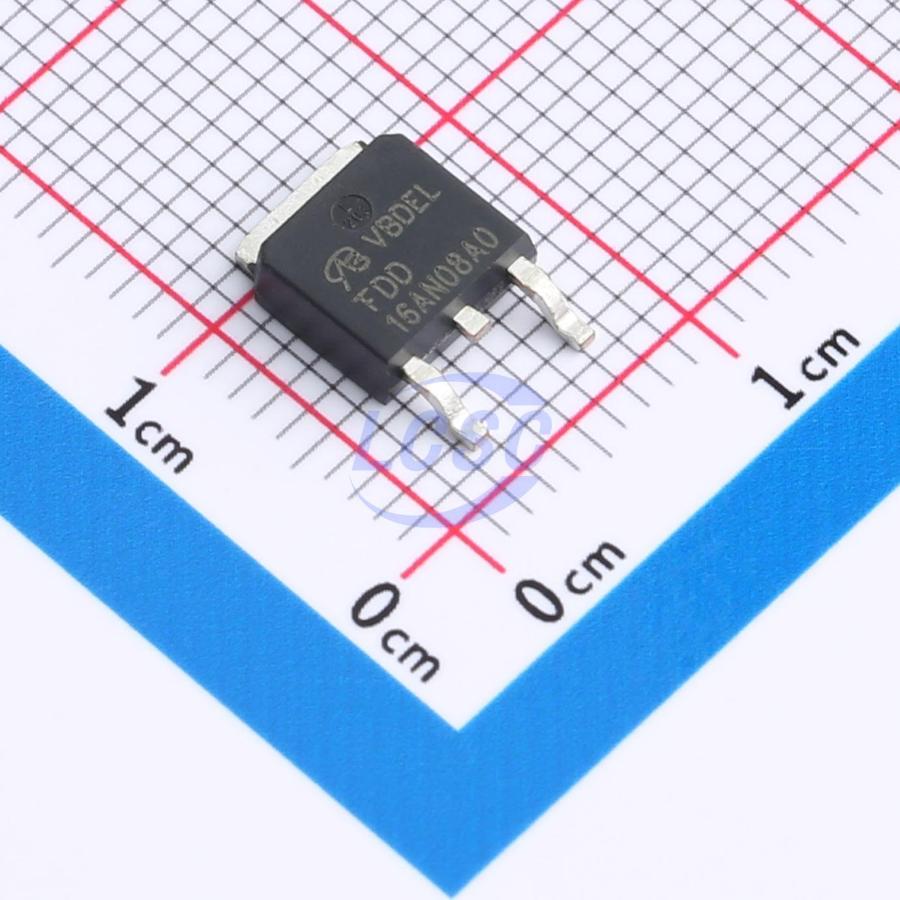

FDD16AN08A0_NF054-VB
N-Channel 100V 45A 136.4W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD16AN08A0_NF054-VB
- Store part #
- C45350933
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C45350933
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.61 | ₹147.61 |
| 10+ | ₹122.56 | ₹1,225.60 |
| 30+ | ₹110.15 | ₹3,304.50 |
| 100+ | ₹97.76 | ₹9,776.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹147.61
₹147.61
excl. GST
₹174.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD16AN08A0_NF054-VB
₹147.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 136.4W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 18.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@0V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Applications
- Primary Side Switch Isolated DC/DC Converter
Key features
- Trench Power MOS FET 100% Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR3710ZTRLPBF-VB#C19190116VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹128.56 · 20 in stock | View |
 | AOD4124&19-VB#C29779802VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 18 | ₹166.98 · 18 in stock | View |
 | 50N10 TO252-VB#C18794972VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 19 | ₹141.94 · 19 in stock | View |
 | NVD6824NLT4G-VB#C18795082VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹130.06 · 50 in stock | View |
 | BUK7227-100B-VB#C18795095VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹130.06 · 45 in stock | View |
