HXY MOSFETDatasheet (PDF)

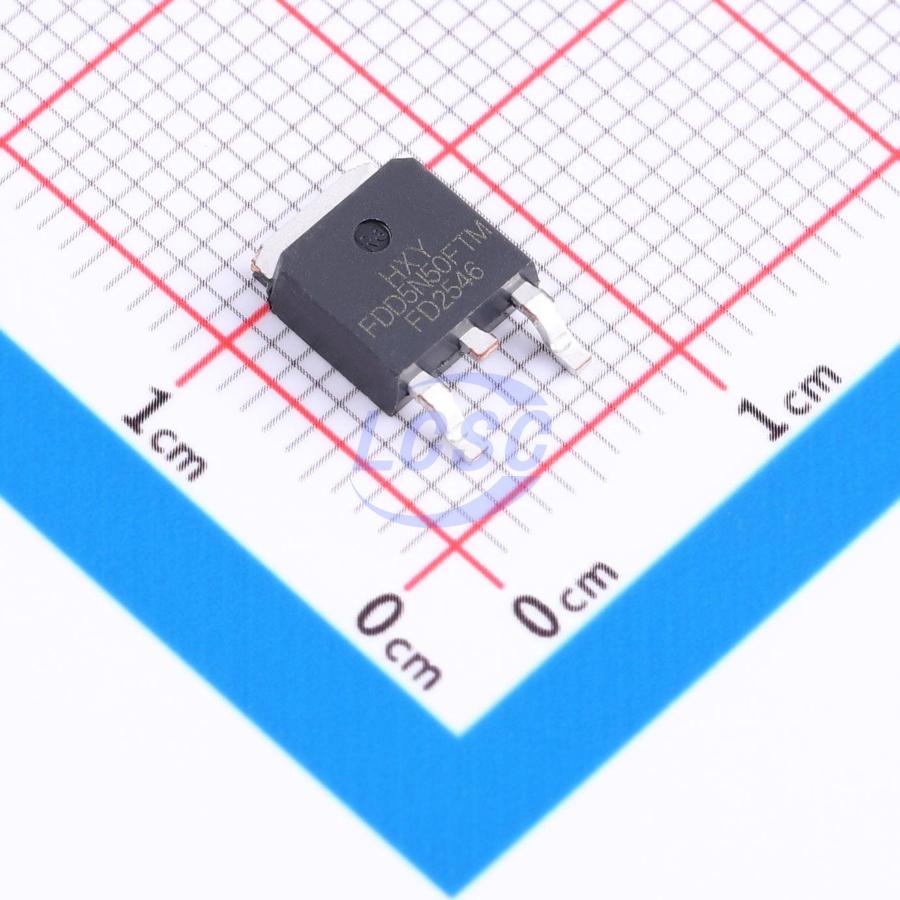

FDD5N50FTM-WS-HXY
83W 500V 5A 1.3Ω@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDD5N50FTM-WS-HXY
- Store part #
- C53262964
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53262964
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.23 | ₹128.23 |
| 10+ | ₹105.24 | ₹1,052.40 |
| 30+ | ₹93.85 | ₹2,815.50 |
| 100+ | ₹82.26 | ₹8,226.00 |
| 500+ | ₹75.61 | ₹37,805.00 |
| 1,000+ | ₹71.96 | ₹71,960.00 |
1 × ₹128.23
₹128.23
excl. GST
₹151.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD5N50FTM-WS-HXY
₹128.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 42pF
- Ciss-Input Capacitance
- 582pF
- Pd - Power Dissipation
- 83W
- Configuration
- Standalone
- Drain to Source Voltage
- 500V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD5NK50ZT4-HXY#C53262956HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 78 | ₹62.72 · 78 in stock | View |
 | IRFR430BTM-HXY#C53262957HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹81.19 · 48 in stock | View |
 | SPD03N50C3ATMA1-HXY#C53262958HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹88.06 · 48 in stock | View |
 | IRFR430BTF-HXY#C53262959HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹144.33 · 48 in stock | View |
 | RJK5030DPD-03#J2-HXY#C53262960HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 49 | ₹271.25 · 49 in stock | View |
