onsemiDatasheet (PDF)

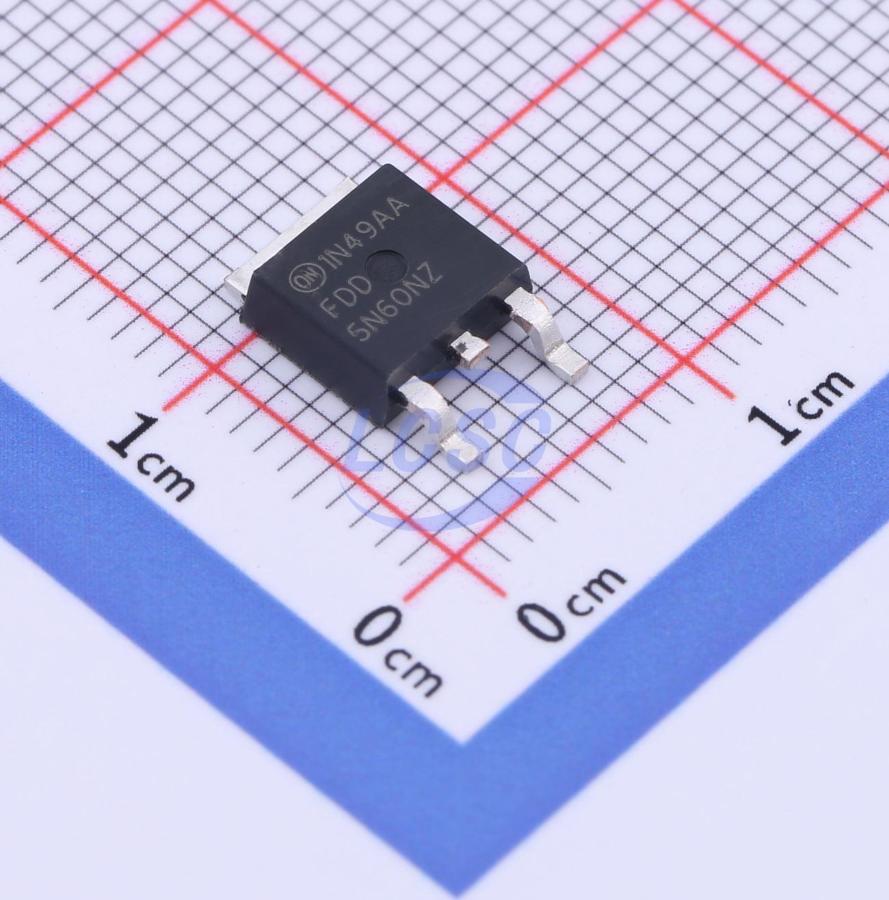

FDD5N60NZTM
N-Channel 600V 4A 83W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 600V 4A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD5N60NZTM
- Store part #
- C388427
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,942 in stock
#C388427
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.05 | ₹92.05 |
| 10+ | ₹81.03 | ₹810.30 |
| 30+ | ₹75.62 | ₹2,268.60 |
| 100+ | ₹70.01 | ₹7,001.00 |
| 500+ | ₹66.77 | ₹33,385.00 |
| 1,000+ | ₹65.04 | ₹65,040.00 |
1 × ₹92.05
₹92.05
excl. GST
₹108.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD5N60NZTM
₹92.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 7.5pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
UniFETTM II MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on advanced planar stripe and DMOS technology. This advanced MOSFET family has the smallest on-state resistance among the planar MOSFET, and also provides superior switching performance and higher avalanche energy strength. In addition, internal gate-source ESD diode allows UniFETTM II MOSFET to withstand over 2kV HBM surge stress. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- LCD/LED/PDP TV
- Lighting
- Uninterruptible Power Supply
Key features
- RDS(on)=1.65 Ω (Typ.) @ VGS=10 V, ID=2.0 A
- Low Gate Charge (Typ. 10 nC)
- Low Crss (Typ. 5 pF)
- 100% Avalanche Tested
- Improved dv/dt Capability
- ESD Improved Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CS5N65A5#C46614257SEP · TO-252 | SEP | TO-252 | 1,390 | ₹23.80 · 1,390 in stock | View |
 | TSD5N60M#C382368Truesemi · DPAK(TO-252) | Truesemi | DPAK(TO-252) | 590 | ₹29.93 · 590 in stock | View |
 | SW4N60#C381523Samwin · TO-252-2 | Samwin | TO-252-2 | 60 | ₹35.75 · 60 in stock | View |
 | STD13N60M6#C3277920ST · DPAK(TO-252) | ST | DPAK(TO-252) | 30 | ₹478.46 · 30 in stock | View |
 | SVF5N60D#C68776Hangzhou Silan Microelectronics · TO-252-2(DPAK) | Hangzhou Silan Microelectronics | TO-252-2(DPAK) | 5 | ₹71.80 · 5 in stock | View |
