onsemiDatasheet (PDF)

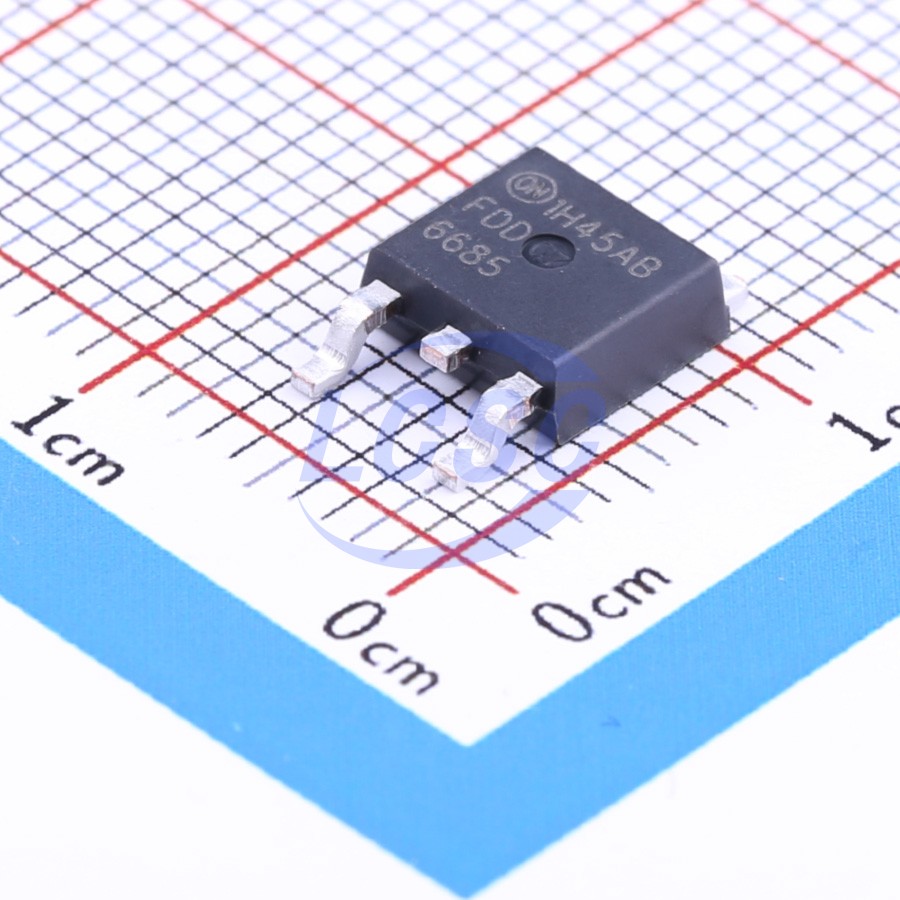

FDD6685
P-Channel 30V 40A 52W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET P-CH 30V 40A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD6685
- Store part #
- C10866
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
249 in stock
#C10866
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.13 | ₹154.13 |
| 10+ | ₹123.87 | ₹1,238.70 |
| 30+ | ₹108.86 | ₹3,265.80 |
| 100+ | ₹94.05 | ₹9,405.00 |
| 500+ | ₹78.37 | ₹39,185.00 |
| 1,000+ | ₹73.81 | ₹73,810.00 |
1 × ₹154.13
₹154.13
excl. GST
₹181.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD6685
₹154.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 440pF
- Ciss-Input Capacitance
- 1.715nF
- Pd - Power Dissipation
- 52W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 17nC@5V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gave drive voltage ratings (4.5V – 25V).
Applications
- Load switch for portable devices
- DC/DC converter
Key features
- –40 A, –30 V. RDS(ON) = 20 mΩ @ VGS = –10 V RDS(ON) = 30 mΩ @ VGS = -4.5 V
- Fast switching speed
- High performance trench technology for extremely low RDS(ON)
- High power and current handling capability
- Qualified to AEC Q101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMD30P03#C17702027Cmos · TO-252 | Cmos | TO-252 | 545 | ₹11.11 · 545 in stock | View |
 | DOD40P03#C36499177DOINGTER · TO-252 | DOINGTER | TO-252 | 11,540 | ₹14.18 · 11,540 in stock | View |
 | DOD30P03#C36499178DOINGTER · TO-252 | DOINGTER | TO-252 | 35 | ₹12.30 · 35 in stock | View |
 | SP30P11TH#C41355020Siliup · TO-252-2L | Siliup | TO-252-2L | 245 | ₹16.55 · 245 in stock | View |
 | DOD60P03#C42395894DOINGTER · TO-252 | DOINGTER | TO-252 | 290 | ₹20.93 · 290 in stock | View |
