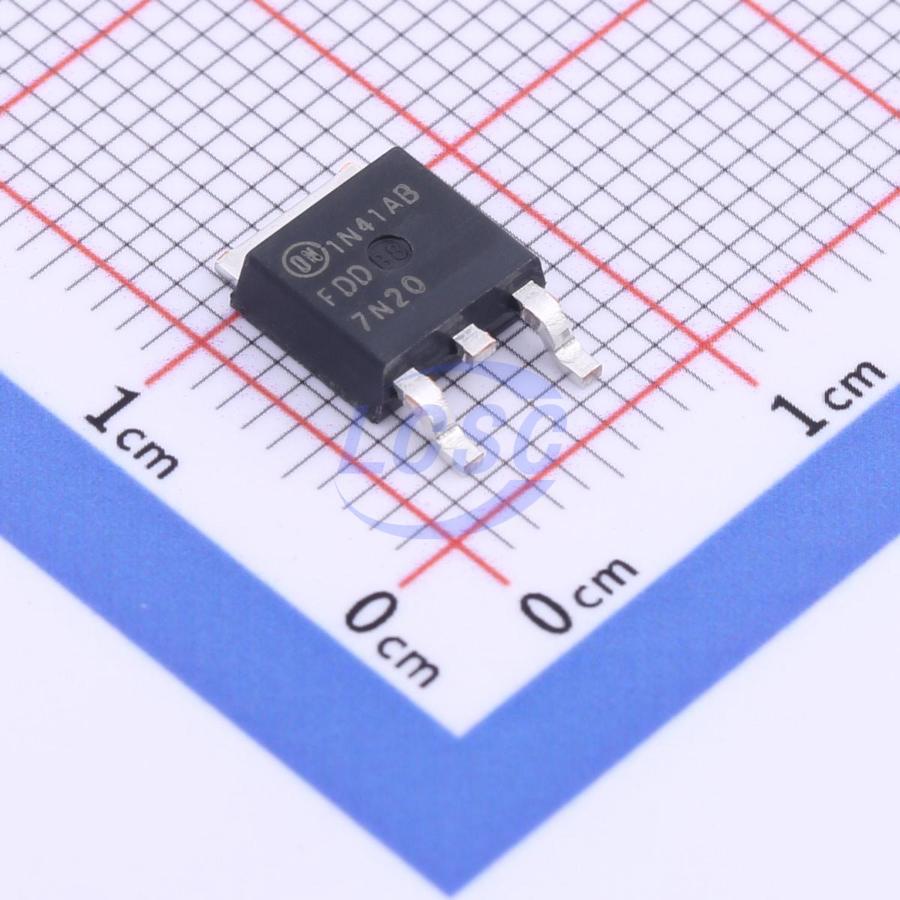

FDD7N20TM
N-Channel 200V 5A 43W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 200V 5A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD7N20TM
- Store part #
- C241784
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
989 in stock
#C241784
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.64 | ₹108.64 |
| 10+ | ₹87.09 | ₹870.90 |
| 30+ | ₹76.20 | ₹2,286.00 |
| 100+ | ₹65.54 | ₹6,554.00 |
| 500+ | ₹56.40 | ₹28,200.00 |
| 1,000+ | ₹53.13 | ₹53,130.00 |
1 × ₹108.64
₹108.64
excl. GST
₹128.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD7N20TM
₹108.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 43W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 690mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.7nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
UniFETTM MOSFET is a high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- LCD/LED/PDP TV
- Consumer Appliances
- Lighting
- Uninterruptible Power
- AC-DC Power Supply
Key features
- RDS(on) = 580 mΩ (Typ.) @ VGS = 10 V, ID = 2.5 A
- Low Gate Charge (Typ. 5 nC)
- Low Crss (Typ. 5 pF)
- 100% Avalanche Tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR220NTRPBF#C2584Infineon · TO-252 | Infineon | TO-252 | 19,895 | ₹42.44 · 19,895 in stock | View |
 | IRFR220NTRLPBF#C537955Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 760 | ₹55.14 · 760 in stock | View |
 | STD5NM60T4#C500961ST · DPAK | ST | DPAK | 2,499 | ₹211.44 · 2,499 in stock | View |
| MDD7N25RH#C50313224MagnaChip Semicon · DPAK | MagnaChip Semicon | DPAK | 310 | ₹35.77 · 310 in stock | View | |
 | WMD7N50RC#C49297408Wayon · TO-252 | Wayon | TO-252 | 1,180 | ₹33.86 · 1,180 in stock | View |
