onsemiDatasheet (PDF)

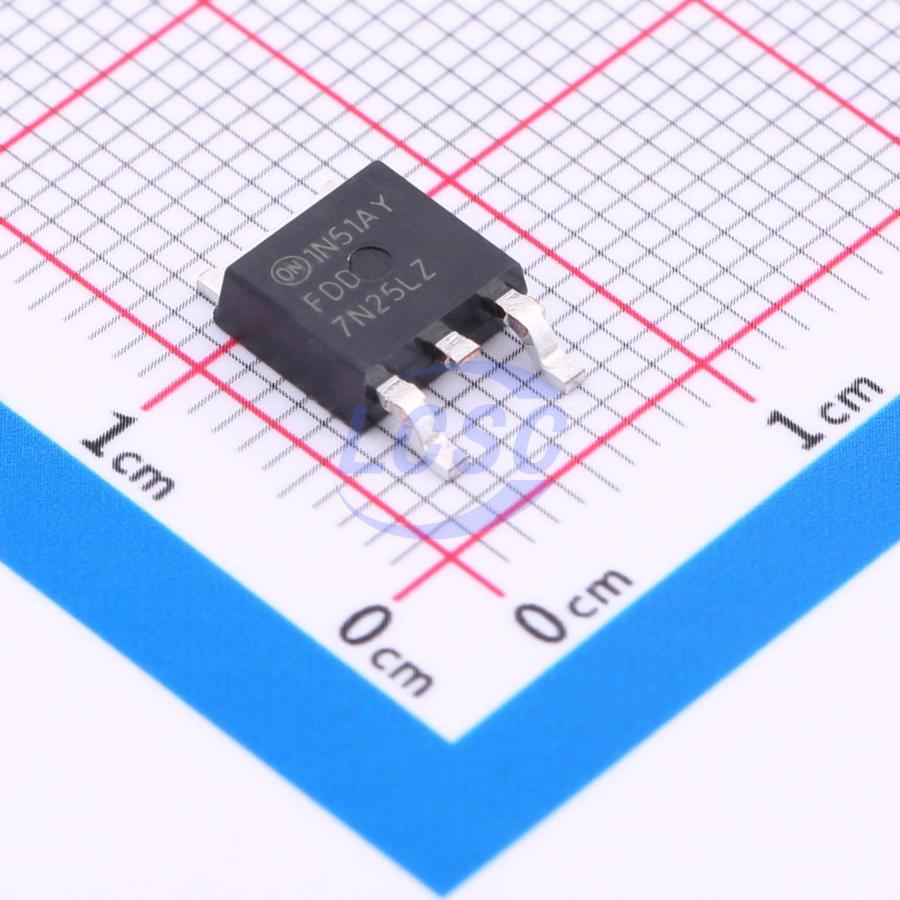

FDD7N25LZTM
N-Channel 250V 6.2A 56W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 250V 6.2A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD7N25LZTM
- Store part #
- C903583
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C903583
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.03 | ₹146.03 |
| 10+ | ₹120.83 | ₹1,208.30 |
| 30+ | ₹106.91 | ₹3,207.30 |
| 100+ | ₹91.49 | ₹9,149.00 |
| 500+ | ₹84.54 | ₹42,270.00 |
| 1,000+ | ₹81.27 | ₹81,270.00 |
1 × ₹146.03
₹146.03
excl. GST
₹172.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD7N25LZTM
₹146.03 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 635pF
- Pd - Power Dissipation
- 56W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 6.2A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 450mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
UniFETTM MOSFET is Fairchild Semiconductor’s high voltag e MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and t o provide better switching performance and higher avalanche energy strength. This device family is suitable for switching powe r converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- LCD/LED/PDP TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
Key features
- RDS(on)=430 mΩ (Typ.) @ VGS=10 V, ID=3.1 A
- Low Gate Charge (Typ. 12 nC)
- Low Crss (Typ. 8 pF)
- 100% Avalanche Tested
- Improved dv/dt Capability
- ESD Improved Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM2517NHK3#C48543259TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 484 | ₹107.12 · 484 in stock | View |
 | IPD80R600P7#C536890Infineon · TO-252-3 | Infineon | TO-252-3 | 99 | ₹260.41 · 99 in stock | View |
 | IPD60R400CE#C459169Infineon · TO-252 | Infineon | TO-252 | On request | ₹93.35 · 0 in stock | View |
 | MOT65R600D#C5143201MOT · TO-252 | MOT | TO-252 | 2,386 | ₹58.19 · 2,386 in stock | View |
 | IPD70R360P7S#C151509Infineon · TO-252 | Infineon | TO-252 | 5,286 | ₹99.28 · 5,286 in stock | View |
