HXY MOSFETDatasheet (PDF)

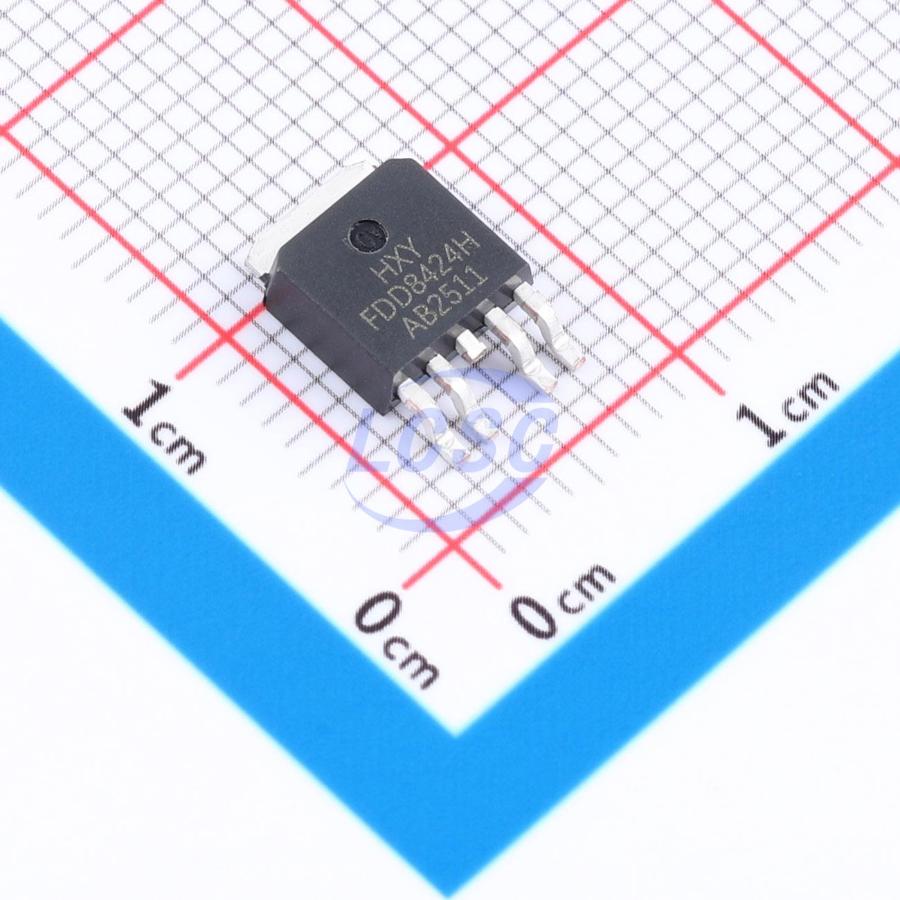

FDD8424H-HXY
N-Channel+P-Channel Array 40V 20A 40W Surface Mount TO-252-4L
TO-252-4LRoHSActive
MOSFET N-CH+P-CH ARR 40V 20A TO-252-4L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FDD8424H-HXY
- Store part #
- C22366760
- Package / case
- TO-252-4L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,543 in stock
#C22366760
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.05 | ₹65.05 |
| 10+ | ₹51.17 | ₹511.70 |
| 30+ | ₹45.10 | ₹1,353.00 |
| 100+ | ₹37.73 | ₹3,773.00 |
| 500+ | ₹34.27 | ₹17,135.00 |
| 1,000+ | ₹32.31 | ₹32,310.00 |
1 × ₹65.05
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD8424H-HXY
₹65.05 for 1 + GST
Specifications
- Configuration
- Common Drain
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 215pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 40W
- Reverse Transfer Capacitance (Crss)
- 135pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 24nC@10v
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.363 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMC4029SK4-HXY#C22366759HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 80 | ₹32.85 · 80 in stock | View |
 | HXY4012GD#C3033442HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 220 | ₹26.92 · 220 in stock | View |
 | AOD609-HXY#C4748763HXY MOSFET · TO-252-4L | HXY MOSFET | TO-252-4L | 350 | ₹29.81 · 350 in stock | View |
