onsemiDatasheet (PDF)

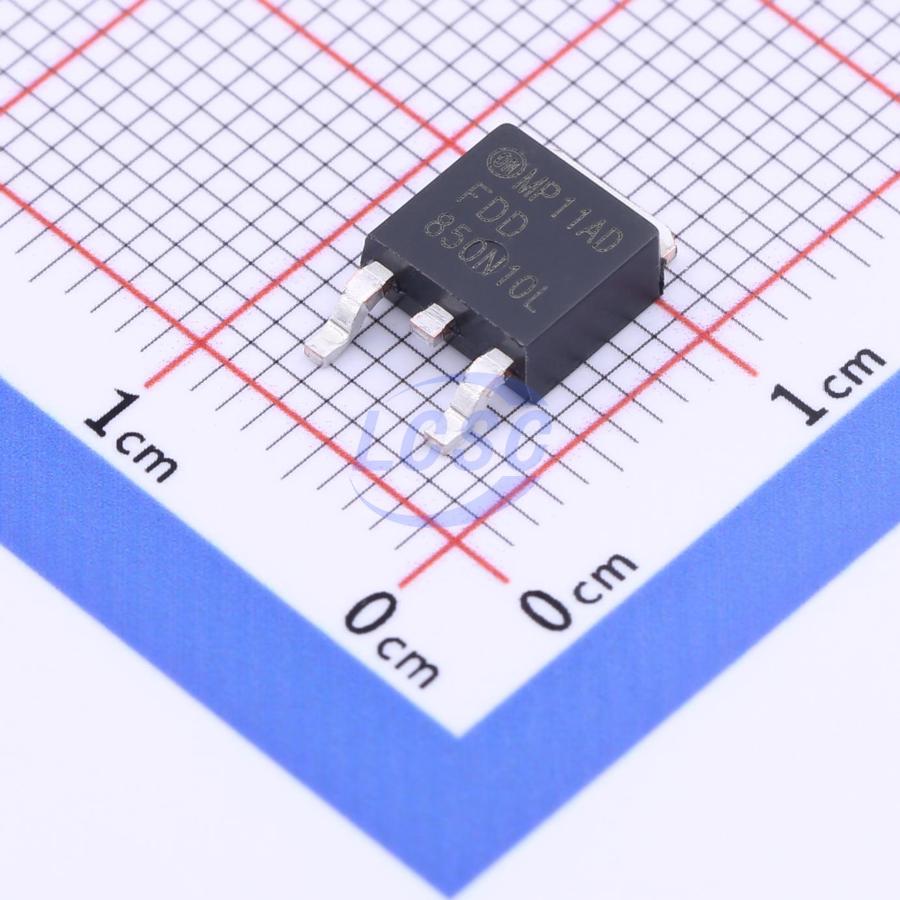

FDD850N10L
N-Channel 100V 15.7A 50W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 100V 15.7A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD850N10L
- Store part #
- C903586
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
174 in stock
#C903586
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹304.22 | ₹304.22 |
| 10+ | ₹262.28 | ₹2,622.80 |
| 30+ | ₹236.00 | ₹7,080.00 |
| 100+ | ₹182.53 | ₹18,253.00 |
| 500+ | ₹170.36 | ₹85,180.00 |
| 1,000+ | ₹165.15 | ₹1,65,150.00 |
1 × ₹304.22
₹304.22
excl. GST
₹358.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD850N10L
₹304.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 1.465nF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15.7A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 61mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
This N-Channel MOSFET is produced using Fairchld Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance and maintain superior switching performance.
Applications
- Consumer Appliances
- LED TV and Monitor Synchronous Rectification
- Uninterruptible Power Supply
- Micro Solar Inverter
Key features
- RDS(on)=61 mΩ (Typ.) @ ID=12 A
- RDS(on)=64 mΩ (Typ.) @ VGS=5 V, ID=12 A
- Low Gate Charge (Typ. 22.2 nC)
- Low Crss (Typ. 42 pF)
- Fast Switching
- 100% Avalanche Tested
- Improved dv/dt Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM10040NK3#C23380918TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 765 | ₹48.38 · 765 in stock | View |
 | DOD15N10#C36499175DOINGTER · TO-252 | DOINGTER | TO-252 | 2,150 | ₹12.71 · 2,150 in stock | View |
 | FDD3690#C903563onsemi · TO-252-2 | onsemi | TO-252-2 | 96 | ₹246.75 · 96 in stock | View |
 | WSF40N10A#C377865Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 582 | ₹50.80 · 582 in stock | View |
 | NP36N10G#C2991157NATLINEAR · TO-252-2L | NATLINEAR | TO-252-2L | 370 | ₹46.97 · 370 in stock | View |
