onsemiDatasheet (PDF)

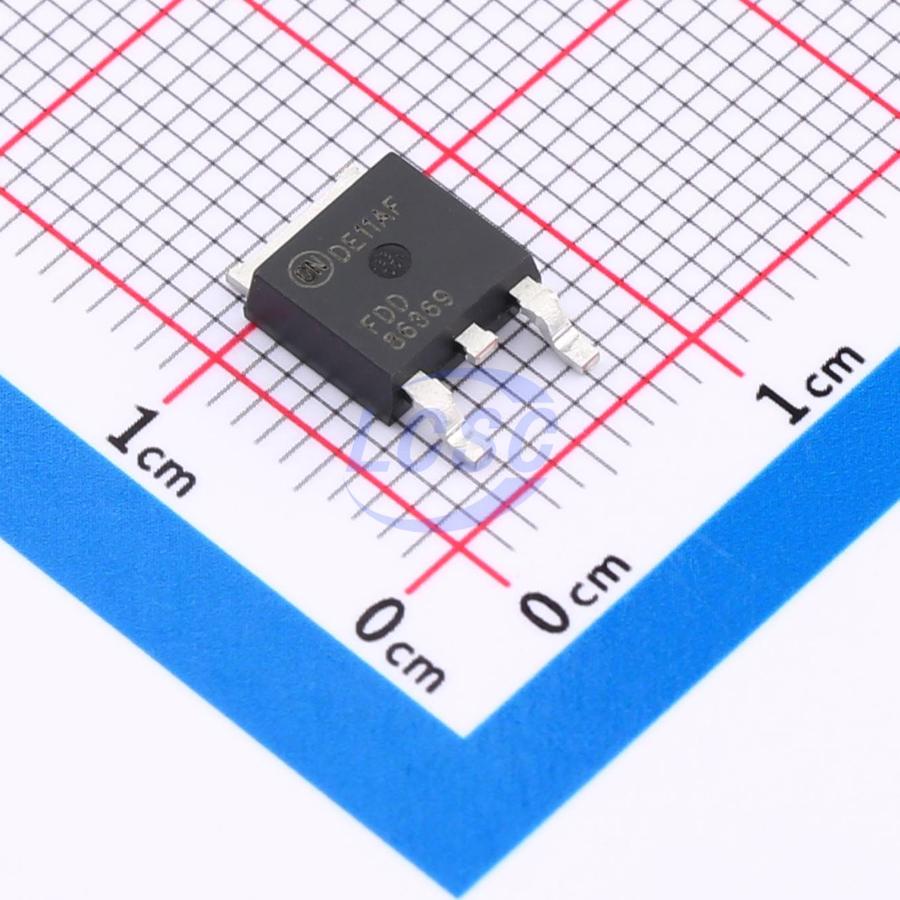

FDD86369-F085
N-Channel 80V 90A 150W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 80V 90A DPAK(TO-252)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD86369-F085
- Store part #
- C903592
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C903592
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹222.30 | ₹222.30 |
| 10+ | ₹187.10 | ₹1,871.00 |
| 30+ | ₹165.15 | ₹4,954.50 |
| 100+ | ₹142.55 | ₹14,255.00 |
| 500+ | ₹132.34 | ₹66,170.00 |
| 1,000+ | ₹128.00 | ₹1,28,000.00 |
1 × ₹222.30
₹222.30
excl. GST
₹262.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD86369-F085
₹222.30 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 2.53nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 5.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
Applications
- Automotive engine control
- Powertrain management
- Solenoid and motor drivers
- Integrated starter-generator
- 12V system main switch
Key features
- Typical RDS(on) = 5.9 \, \textmΩ at VGS = 10V, ID = 80A
- Typical Qg(\texttot) = 34 \, \textnC at VGS = 10 \, \textV, ID = 80 \, \textA
- Single pulse avalanche rated
- RoHS compliant
- AEC Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD86369#C903591onsemi · DPAK(TO-252) | onsemi | DPAK(TO-252) | 2 | ₹273.05 · 2 in stock | View |
 | IPD068N10N3G(UMW)#C18208538UMW · TO-252 | UMW | TO-252 | 397 | ₹65.94 · 397 in stock | View |
 | SFG08R06DF#C2762909ORIENTAL SEMI · TO-252-2 | ORIENTAL SEMI | TO-252-2 | 2,500 | ₹69.54 · 2,500 in stock | View |
 | NSS085N100S#C7427705NH · TO-252 | NH | TO-252 | 17,340 | ₹51.45 · 17,340 in stock | View |
 | SWD062R08E8T#C5151848Samwin · TO-252 | Samwin | TO-252 | 23 | ₹68.68 · 23 in stock | View |
