onsemiDatasheet (PDF)

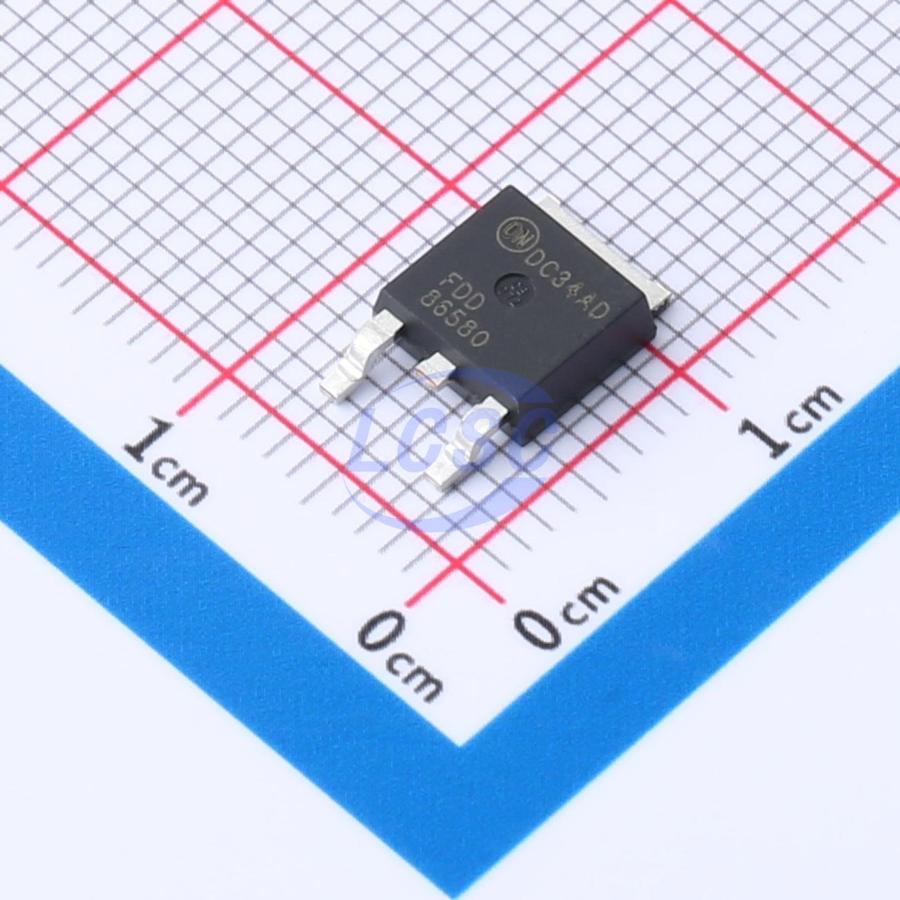

FDD86580-F085
N-Channel 60V 50A 75W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 60V 50A DPAK(TO-252)
- Manufacturer
- onsemi
- Manufacturer part #
- FDD86580-F085
- Store part #
- C903597
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61 in stock
#C903597
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.96 | ₹148.96 |
| 10+ | ₹124.60 | ₹1,246.00 |
| 30+ | ₹111.12 | ₹3,333.60 |
| 100+ | ₹96.12 | ₹9,612.00 |
| 500+ | ₹89.38 | ₹44,690.00 |
| 1,000+ | ₹86.33 | ₹86,330.00 |
1 × ₹148.96
₹148.96
excl. GST
₹175.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD86580-F085
₹148.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 440pF
- Ciss-Input Capacitance
- 1.43nF
- Pd - Power Dissipation
- 75W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.385 g
Overview
Applications
- Automotive engine control
- Powertrain management
- Solenoid and motor drivers
- Electronic steering systems
- Integrated starter/alternator
- Distributed power architecture and voltage regulation modules
- 12V system main switch
Key features
- Typical R<sub>DS(on)</sub> = 7.8 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 50 A
- Typical Q<sub>g(tot)</sub> = 20 nC at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 50 A
- Single-pulse avalanche rated
- RoHS compliant
- AEC Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60N08GTH#C22466773Siliup · TO-252 | Siliup | TO-252 | 1,185 | ₹23.15 · 1,185 in stock | View |
 | IPD50N08S4-13#C536779Infineon · TO-252-3 | Infineon | TO-252-3 | 30 | ₹220.74 · 30 in stock | View |
 | IPD088N06N3GBTMA1#C5772126Infineon · TO-252-3 | Infineon | TO-252-3 | 664 | ₹141.28 · 664 in stock | View |
 | HY1001D#C2983279HUAYI · TO-252-2L | HUAYI | TO-252-2L | 22 | ₹49.97 · 22 in stock | View |
 | HYG060N08NS1D#C2827238HUAYI · TO-252-2L | HUAYI | TO-252-2L | 9,672 | ₹56.25 · 9,672 in stock | View |
