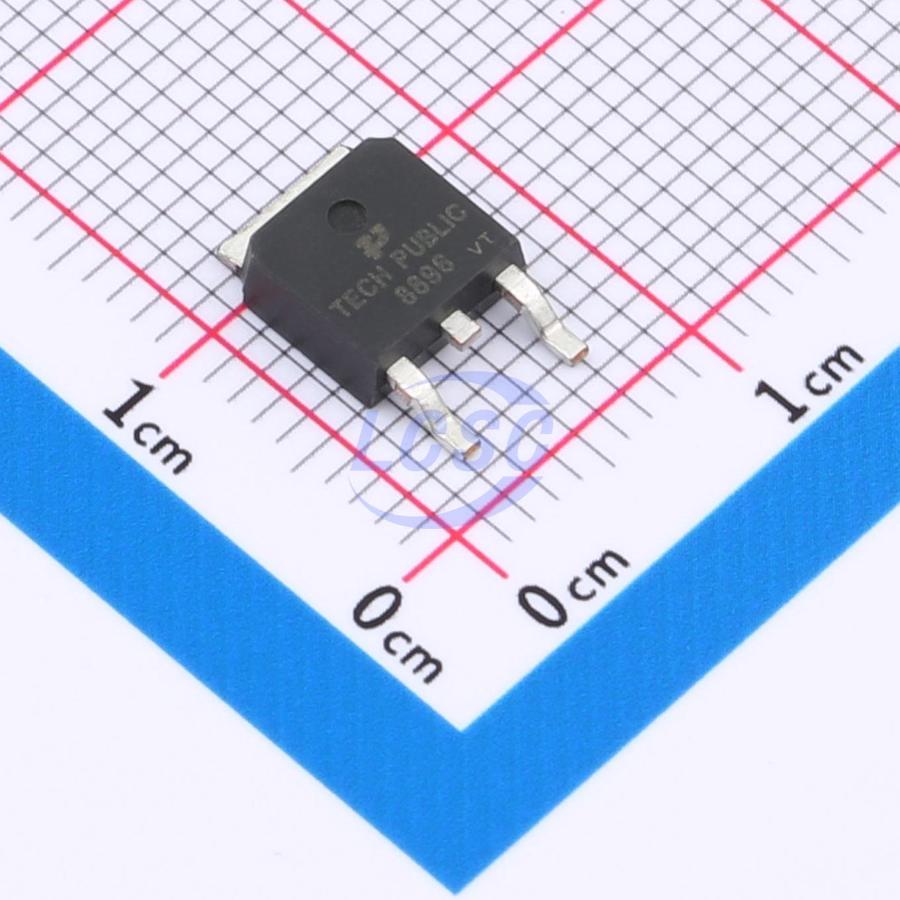

FDD8896-TP
N-Channel 30V 90A 181W Surface Mount TO-252-3L
TO-252-3LRoHSActive
MOSFET N-CH 30V 90A TO-252-3L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDD8896-TP
- Store part #
- C41407970
- Package / case
- TO-252-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,150 in stock
#C41407970
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.98 | ₹149.90 |
| 50+ | ₹23.96 | ₹1,198.00 |
| 150+ | ₹21.38 | ₹3,207.00 |
| 500+ | ₹18.16 | ₹9,080.00 |
| 2,500+ | ₹16.72 | ₹41,800.00 |
| 5,000+ | ₹15.86 | ₹79,300.00 |
5 × ₹29.98
₹149.90
excl. GST
₹176.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD8896-TP
₹149.90 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 90A
- Ciss-Input Capacitance
- 5.672nF
- Pd - Power Dissipation
- 181W
- Reverse Transfer Capacitance (Crss)
- 352pF
- RDS(on)
- 7.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 103nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.453 g
Overview
Applications
- Load Switch
- PWM Application
- Power management
Key features
- 30V, 90A
- RDS(ON) 3.88mΩ @ VGS = 10V (Typ)
- Advanced Trench Technology
- Provide Excellent RDS(on) and Low Gate Charge
- Lead free product is acquired
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3090NK3#C5350849TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 160 | ₹18.11 · 160 in stock | View |
 | TPM3090NK3-4#C5350853TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 450 | ₹18.11 · 450 in stock | View |
 | AOD4132#C5350857TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 4,945 | ₹29.23 · 4,945 in stock | View |
 | IRFR3709Z#C5350859TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,520 | ₹45.56 · 1,520 in stock | View |
 | 100N03#C41407548TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 2,245 | ₹21.10 · 2,245 in stock | View |
