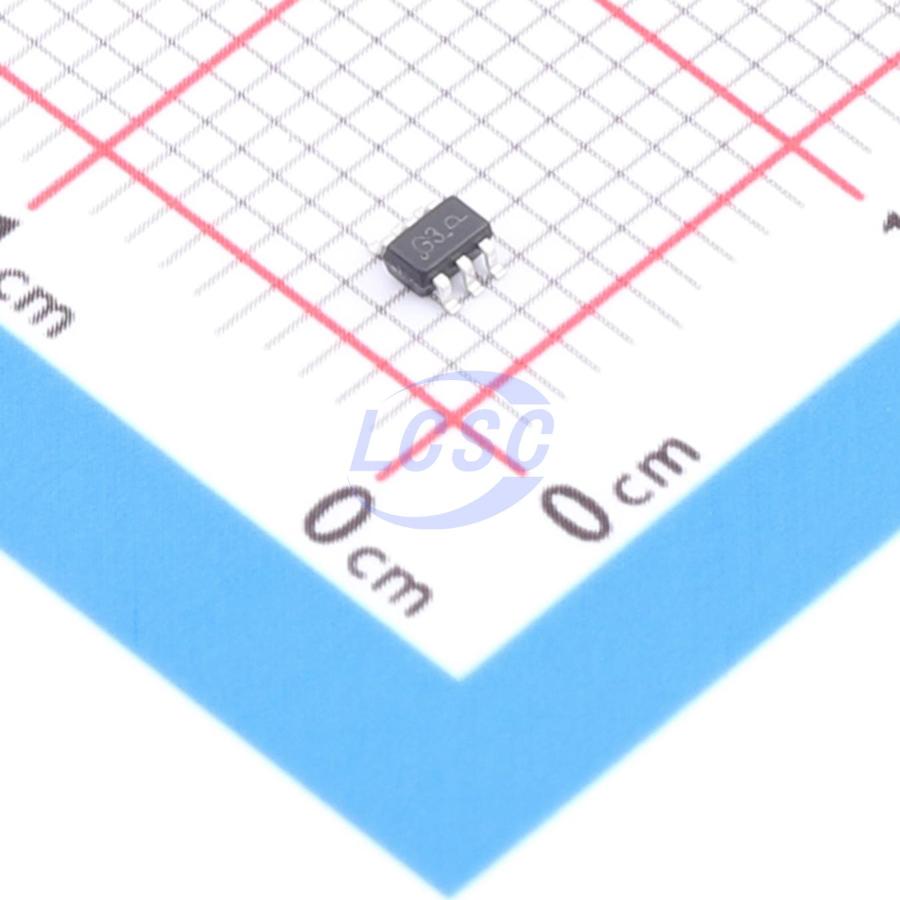

FDG327N-TP
20V 1.6A 420mW Surface Mount SOT-363
SOT-363RoHSActive
MOSFET 20V 1.6A SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDG327N-TP
- Store part #
- C48995518
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C48995518
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.26 | ₹56.30 |
| 50+ | ₹8.97 | ₹448.50 |
| 150+ | ₹7.82 | ₹1,173.00 |
| 500+ | ₹6.96 | ₹3,480.00 |
| 3,000+ | ₹6.27 | ₹18,810.00 |
| 6,000+ | ₹5.93 | ₹35,580.00 |
5 × ₹11.26
₹56.30
excl. GST
₹66.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDG327N-TP
₹56.30 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.6A
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 300pF
- Pd - Power Dissipation
- 420mW
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 65mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 700mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The IRLR9343PBF utilizes advanced trench technology to deliver excellent RDS(ON), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Reverse battery protection - Load switch - Power management - Motor control
Key features
- VDS = -60V, ID = -10A
- RDS(ON) < 140mΩ at VGS = 10V
