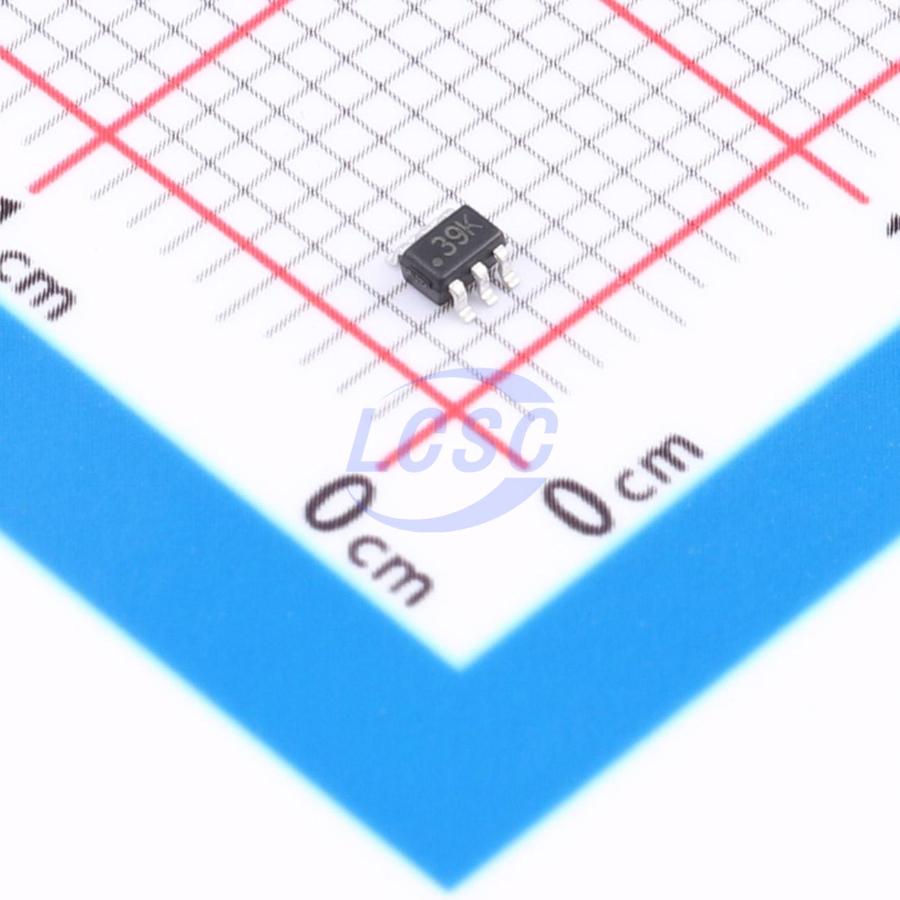

FDG6302P-TP
20V 660mA 150mW 430mΩ@4.5V 2 P-Channel SOT-363 Single FETs, MOSFETs
SOT-363RoHSActive
MOSFET 20V 660mA SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDG6302P-TP
- Store part #
- C51886171
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C51886171
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.52 | ₹55.20 |
| 100+ | ₹4.33 | ₹433.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.52
₹55.20
excl. GST
₹65.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDG6302P-TP
₹55.20 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 20pF
- Current - Continuous Drain(Id)
- 660mA
- Ciss-Input Capacitance
- 160pF
- Pd - Power Dissipation
- 150mW
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 430mΩ@4.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 4.1nC@4.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Battery Protection - Load Switch - Power Management - Power Converter Circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI3139KDW-TP#C51886165TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,980 | ₹5.90 · 2,980 in stock | View |
 | DMP2200UDW-TP#C51886167TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,640 | ₹5.89 · 2,640 in stock | View |
 | TPNTJD4152PT2G#C51886170TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 8,380 | ₹5.69 · 8,380 in stock | View |
 | BSD223P#C51886168TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,750 | ₹5.52 · 2,750 in stock | View |
 | DMG6302UDW-TP#C51886169TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,000 | ₹5.89 · 3,000 in stock | View |
