MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
TECH PUBLICDatasheet (PDF)

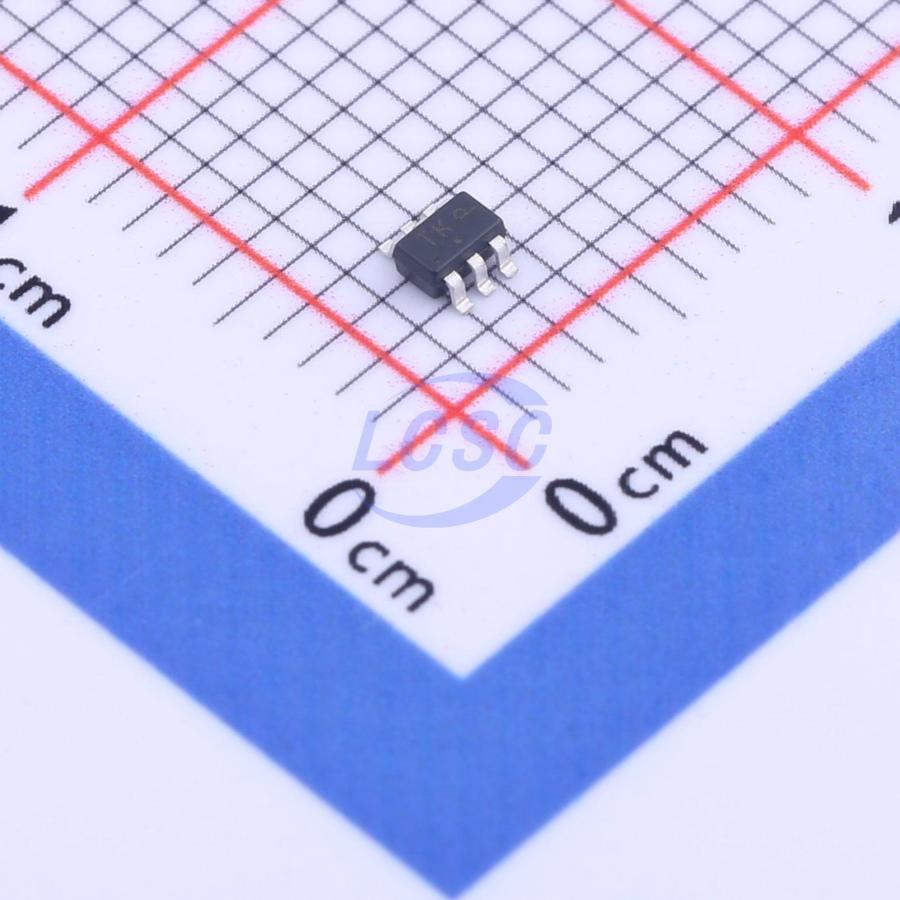

FDG6308P-P
N-Channel Array 20V 1.1A 280mW Surface Mount SOT-363
SOT-363RoHSActive
MOSFET N-CH ARR 20V 1.1A SOT-363
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- FDG6308P-P
- Store part #
- C2928736
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,070 in stock
#C2928736
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.01 | ₹45.05 |
| 50+ | ₹8.82 | ₹441.00 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹8.57 | ₹4,285.00 |
5 × ₹9.01
₹45.05
excl. GST
₹53.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDG6308P-P
₹45.05 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 6pF
- Ciss-Input Capacitance
- 55pF
- Pd - Power Dissipation
- 280mW
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.1A
- Reverse Transfer Capacitance (Crss)
- 4.5pF
- RDS(on)
- 1.05Ω@1.8V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 500pC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Notebook
- Load Switch
- Networking
- Hand-held Instruments
Key features
- Fast switching
- Green Device Available
- Suit for 1.5V Gate Drive Applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTJD4152PT1G#C2928713TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,715 | ₹17.34 · 2,715 in stock | View |
 | TPNTJD4152PT1G#C2928714TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,645 | ₹15.82 · 2,645 in stock | View |
 | TPM4152PEC6#C2928728TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 4,380 | ₹16.01 · 4,380 in stock | View |
 | PDMP2004DWK#C2928735TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 60 | ₹9.01 · 60 in stock | View |
 | FDG6304P#C5197390TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,845 | ₹11.62 · 3,845 in stock | View |
