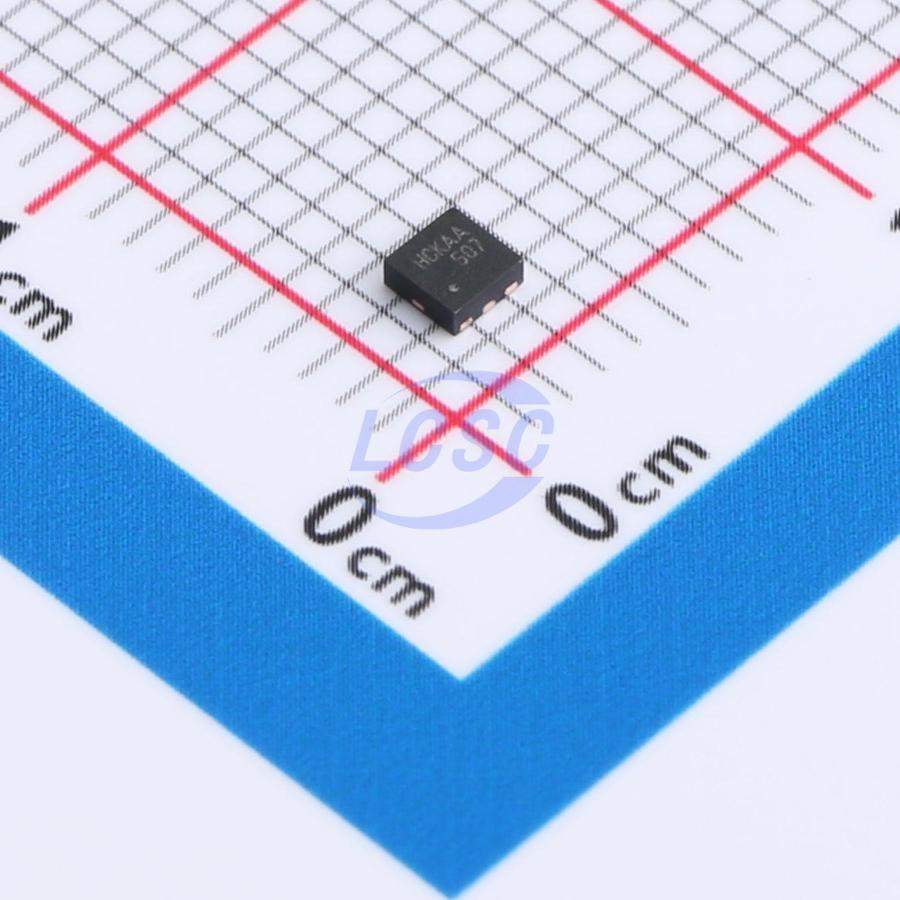

FDMA507PZ
2.4W 20V 7.8A 24mΩ@5V 1 P-Channel P-Channel VDFN-6(2x2) Single FETs, MOSFETs RoHS
VDFN-6(2x2)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDMA507PZ
- Store part #
- C890900
- Package / case
- VDFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C890900
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.63 | ₹65.63 |
| 10+ | ₹64.11 | ₹641.10 |
| 30+ | ₹63.24 | ₹1,897.20 |
| 100+ | ₹62.15 | ₹6,215.00 |
1 × ₹65.63
₹65.63
excl. GST
₹77.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMA507PZ
₹65.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 265pF
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 2.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 7.8A
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 24mΩ@5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 30nC@5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
This device is designed for battery charging or load switching in cellular phones and other ultra-portable applications. It incorporates MOSFETs with low on-resistance. The MicroFET 2X2 package offers excellent thermal performance for its physical size, making it ideal for linear mode applications.
Applications
- Cellular phones
- Other ultra-portable applications
- Linear mode applications
Key features
- Max rDS(on) = 24 mΩ at VGS = -5 V, ID = -7.8 A
- Max rDS(on) = 25 mΩ at VGS = -4.5 V, ID = -7 A
- Max rDS(on) = 35 mΩ at VGS = -2.5 V, ID = -5.5 A
- Max rDS(on) = 45 mΩ at VGS = -1.8 V, ID = -4 A
- MicroFET 2×2 mm package, low profile — 0.8 mm max
- Typical HBM ESD protection level >3.2 kV
- Halogen-free and antimony oxide-free
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSCB10P02#C28314515HUASHUO · DFN2x2-6L | HUASHUO | DFN2x2-6L | 3,030 | ₹9.70 · 3,030 in stock | View |
| FDMA910PZ#C388426onsemi · VDFN-6(2x2) | onsemi | VDFN-6(2x2) | 1 | ₹205.28 · 1 in stock | View | |
 | SP30P16NQ#C41355026Siliup · PDFN-6L(2x2) | Siliup | PDFN-6L(2x2) | 2,035 | ₹13.96 · 2,035 in stock | View |
 | LWP3020AD2#C54740924Lewa Micro · DFN-6L(2x2) | Lewa Micro | DFN-6L(2x2) | 2,470 | ₹17.32 · 2,470 in stock | View |
 | DMP2021UFDF-7#C151459DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 3,000 | ₹139.30 · 3,000 in stock | View |
