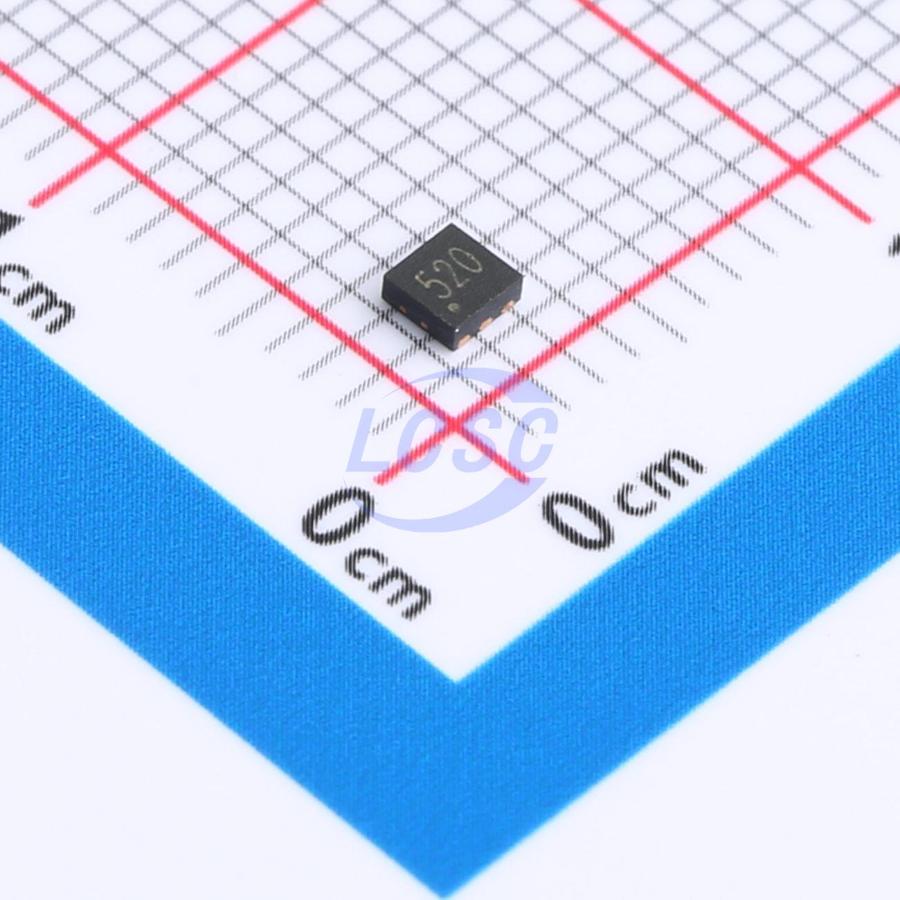

FDMA520PZ-VB
P-Channel 20V 10A 3.3W Surface Mount DFN-6(2x2)
DFN-6(2x2)RoHSActive
MOSFET P-CH 20V 10A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDMA520PZ-VB
- Store part #
- C7494575
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C7494575
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.81 | ₹87.81 |
| 10+ | ₹71.64 | ₹716.40 |
| 30+ | ₹63.65 | ₹1,909.50 |
| 100+ | ₹55.67 | ₹5,567.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹87.81
₹87.81
excl. GST
₹103.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMA520PZ-VB
₹87.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 3.3W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 30mΩ@4.5V;40mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
Applications
- Load switch, power amplifier switch, and battery switch for portable devices
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- Thermally enhanced DFN2X2 package
- Small package footprint
- Low on-resistance
- RoHS compliant
- Halogen-free
