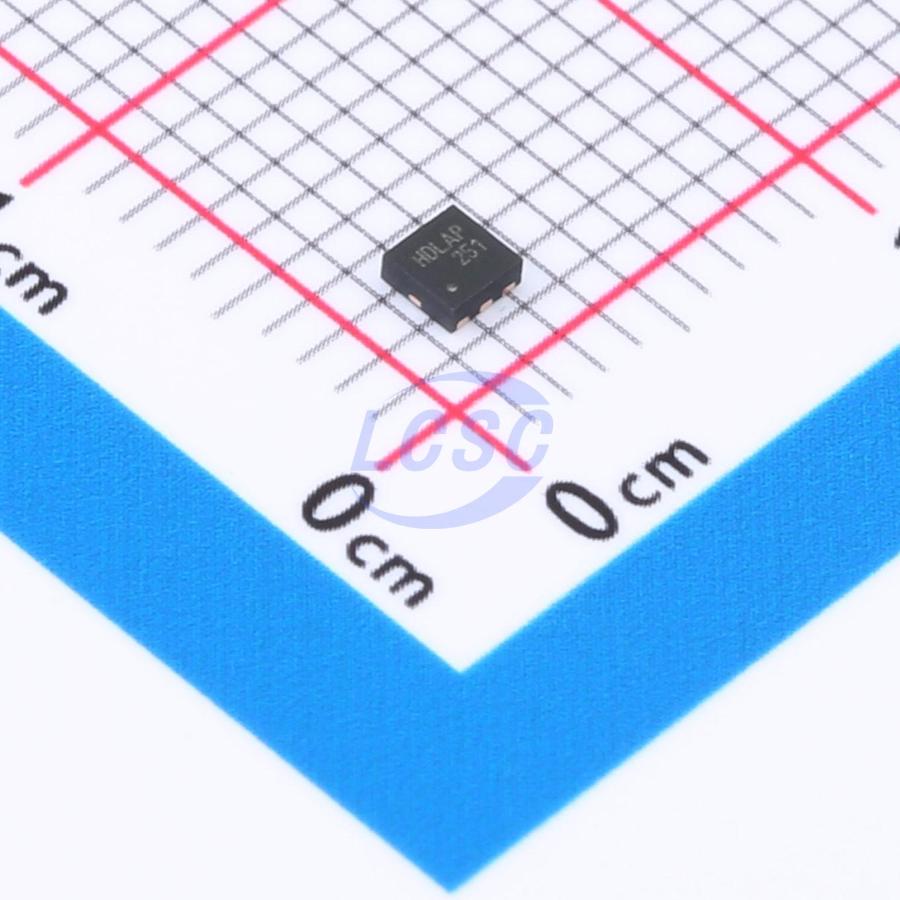

FDMA86251
N-Channel 150V 2.4A 2.4W Surface Mount VDFN-6(2x2)
VDFN-6(2x2)ROHS3 CompliantActive
MOSFET N-CH 150V 2.4A VDFN-6(2x2)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMA86251
- Store part #
- C890907
- Package / case
- VDFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C890907
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.30 | ₹241.30 |
| 10+ | ₹202.86 | ₹2,028.60 |
| 30+ | ₹178.75 | ₹5,362.50 |
| 100+ | ₹154.21 | ₹15,421.00 |
| 500+ | ₹142.92 | ₹71,460.00 |
| 1,000+ | ₹138.13 | ₹1,38,130.00 |
1 × ₹241.30
₹241.30
excl. GST
₹284.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMA86251
₹241.30 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 24pF
- Ciss-Input Capacitance
- 363pF
- Pd - Power Dissipation
- 2.4W
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 2.4A
- Reverse Transfer Capacitance (Crss)
- 2.4pF
- RDS(on)
- 175mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
This device has been designed to provide maximum efficiency and thermal performance for synchronous buck converters. The low rDS(on) and gate charge provide excellent switching performance.
Applications
- DC – DC Primary Switch
- Load Switch
Key features
- Maximum r<sub>DS(on)</sub> = 175 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 2.4 A
- Maximum r<sub>DS(on)</sub> = 237 mΩ at V<sub>GS</sub> = 6 V, I<sub>D</sub> = 2.0 A
- Ultra-thin profile — new 2x2 mm MicroFET package with maximum thickness of 0.8 mm
- Halogen-free and antimony oxide-free
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SiA456DJ-VB#C52110104VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | On request | ₹70.54 · 0 in stock | View |
| VBQG1201K#C52110135VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | On request | ₹75.54 · 0 in stock | View | |
