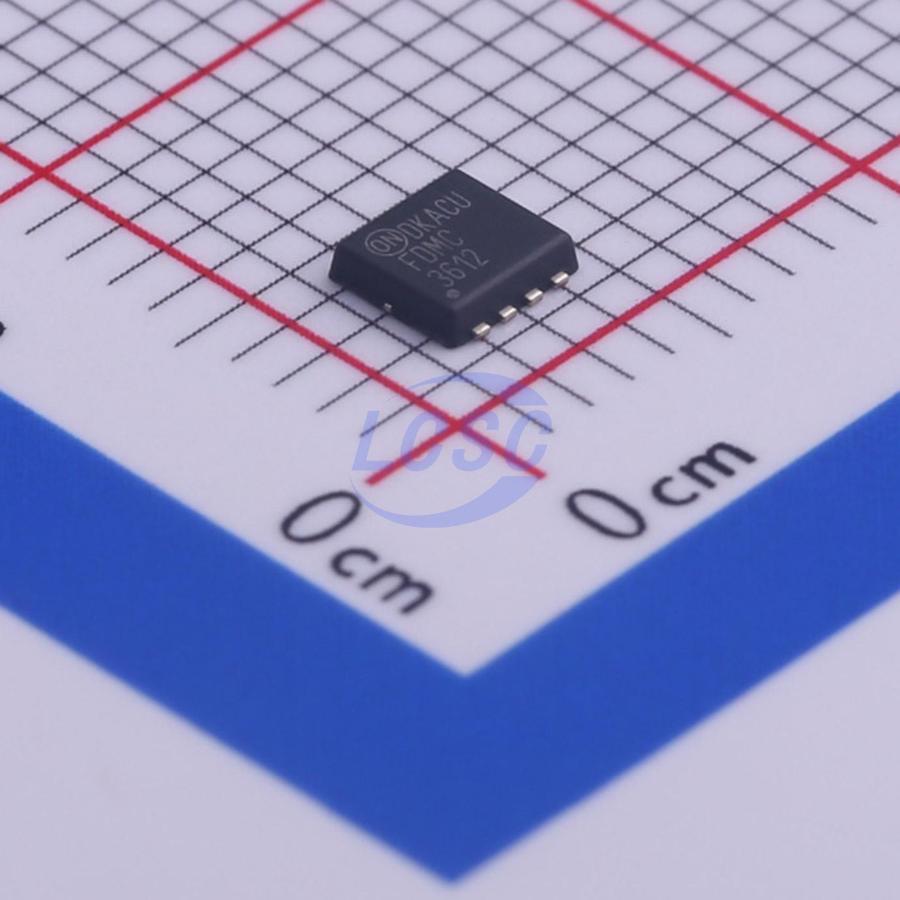

FDMC3612
N-Channel 100V 12A 35W Surface Mount Power-33
Power-33ROHS3 CompliantActive
MOSFET N-CH 100V 12A Power-33
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC3612
- Store part #
- C455160
- Package / case
- Power-33
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
856 in stock
#C455160
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.79 | ₹82.79 |
| 10+ | ₹66.49 | ₹664.90 |
| 30+ | ₹58.24 | ₹1,747.20 |
| 100+ | ₹50.19 | ₹5,019.00 |
| 500+ | ₹42.59 | ₹21,295.00 |
| 1,000+ | ₹39.98 | ₹39,980.00 |
1 × ₹82.79
₹82.79
excl. GST
₹97.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC3612
₹82.79 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 35W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 110mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.147 g
Overview
This N-channel MOSFET is fabricated using an advanced power trench process, specifically optimized to minimize on-resistance while maintaining excellent switching performance.
Applications
- DC-DC conversion
- PSE switching
Key features
- Maximum r<sub>DS(on)</sub> = 110 mΩ at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 3.3 A
- Maximum r<sub>DS(on)</sub> = 122 mΩ at V<sub>GS</sub> = 6 V, I<sub>D</sub> = 3.0 A
- Low profile — Power 33 package maximum height 1 mm
- 100% UI1L tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB0012#C701031HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 13,395 | ₹24.28 · 13,395 in stock | View |
| ZJ150TFG#C54110313DOINGTER · DFN-8(3x3) | DOINGTER | DFN-8(3x3) | 390 | ₹28.79 · 390 in stock | View | |
 | NSH300N15P3#C46352557NH · PDFN3x3-8 | NH | PDFN3x3-8 | 3,883 | ₹84.31 · 3,883 in stock | View |
 | HSBB15N20A#C45385114HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 1,381 | ₹65.85 · 1,381 in stock | View |
 | APG250N01Q#C5443731ALLPOWER · PDFN3x3-8L | ALLPOWER | PDFN3x3-8L | 28,485 | ₹48.08 · 28,485 in stock | View |
