onsemiDatasheet (PDF)

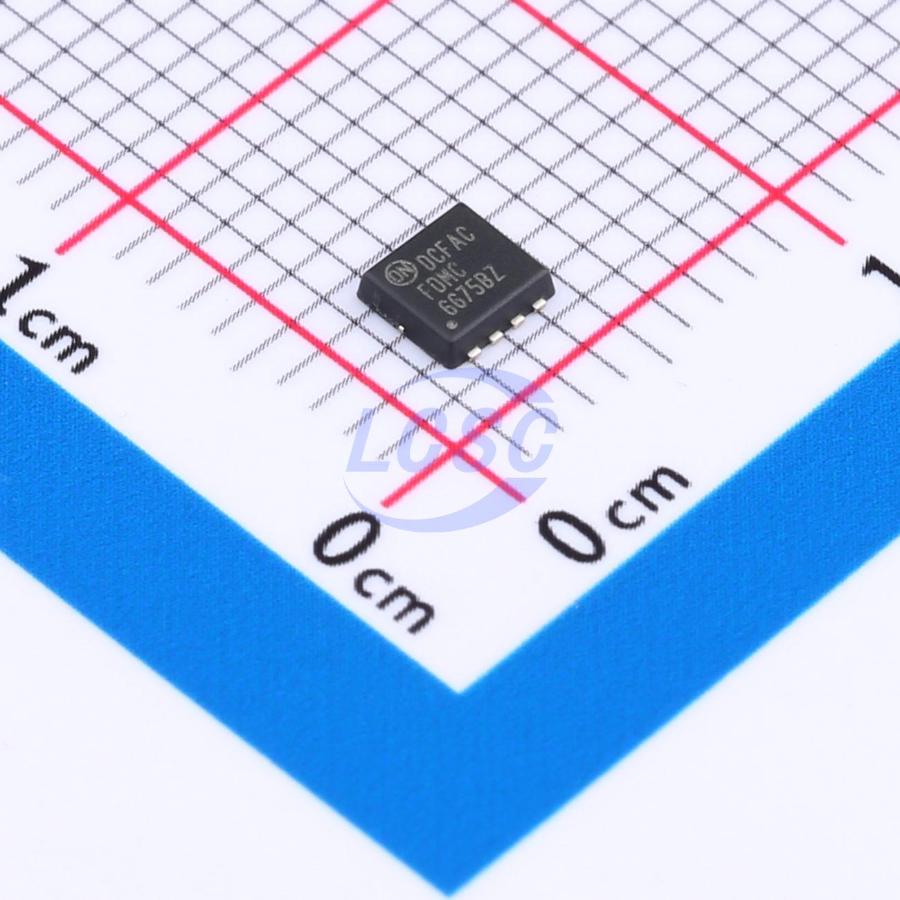

FDMC6675BZ
30V 20A 36W Surface Mount WDFN-8(3.3x3.3)
WDFN-8(3.3x3.3)ROHS3 CompliantActive
MOSFET 30V 20A WDFN-8(3.3x3.3)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC6675BZ
- Store part #
- C890937
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
184 in stock
#C890937
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.39 | ₹78.39 |
| 10+ | ₹76.67 | ₹766.70 |
| 30+ | ₹75.37 | ₹2,261.10 |
| 100+ | ₹74.29 | ₹7,429.00 |
1 × ₹78.39
₹78.39
excl. GST
₹92.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC6675BZ
₹78.39 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.865nF
- Pd - Power Dissipation
- 36W
- Reverse Transfer Capacitance (Crss)
- 525pF
- RDS(on)
- 14.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 65nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The FDMC6675BZ has been designed to minimize losses in load switch applications. Advancements in both silicon and package technologies have been combined to offer the lowest RDS(on) and ESD protection.
Applications
- Load Switch in Notebook and Server
- Notebook Battery Pack Power Management
Key features
- Max RDS(on)=14.4 mΩ at VGS=-10 V, ID = -9.5 A
- Max RDS(on)=27.0 mΩ at VGS=-4.5 V, ID = -6.9 A
- HBM ESD Protection Level of 8 kV Typical
- Extended VGSS Range (-25 V) for Battery Applications
- High Performance Trench Technology for Extremely Low RDS(on)
- High Power and Current Handling Capability
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE30P20Q#C502778NCE · DFN3.3x3.3-8L | NCE | DFN3.3x3.3-8L | 6,410 | ₹61.04 · 6,410 in stock | View |
 | XR60P03D#C42456939XNRUSEMI · PDFN-8L(3.3x3.3) | XNRUSEMI | PDFN-8L(3.3x3.3) | 3,305 | ₹15.88 · 3,305 in stock | View |
 | LWP4015CD3#C54740934Lewa Micro · PDFN-8L(3.3x3.3) | Lewa Micro | PDFN-8L(3.3x3.3) | 4,930 | ₹37.07 · 4,930 in stock | View |
 | SP30P08NJ#C41355014Siliup · PDFNWB-8L(3.3x3.3) | Siliup | PDFNWB-8L(3.3x3.3) | 2,495 | ₹24.93 · 2,495 in stock | View |
 | FH38P03G6#C2929033XIN FEI HONG · DFN-8-EP(3.3x3.3) | XIN FEI HONG | DFN-8-EP(3.3x3.3) | 83 | ₹18.72 · 83 in stock | View |
