onsemiDatasheet (PDF)

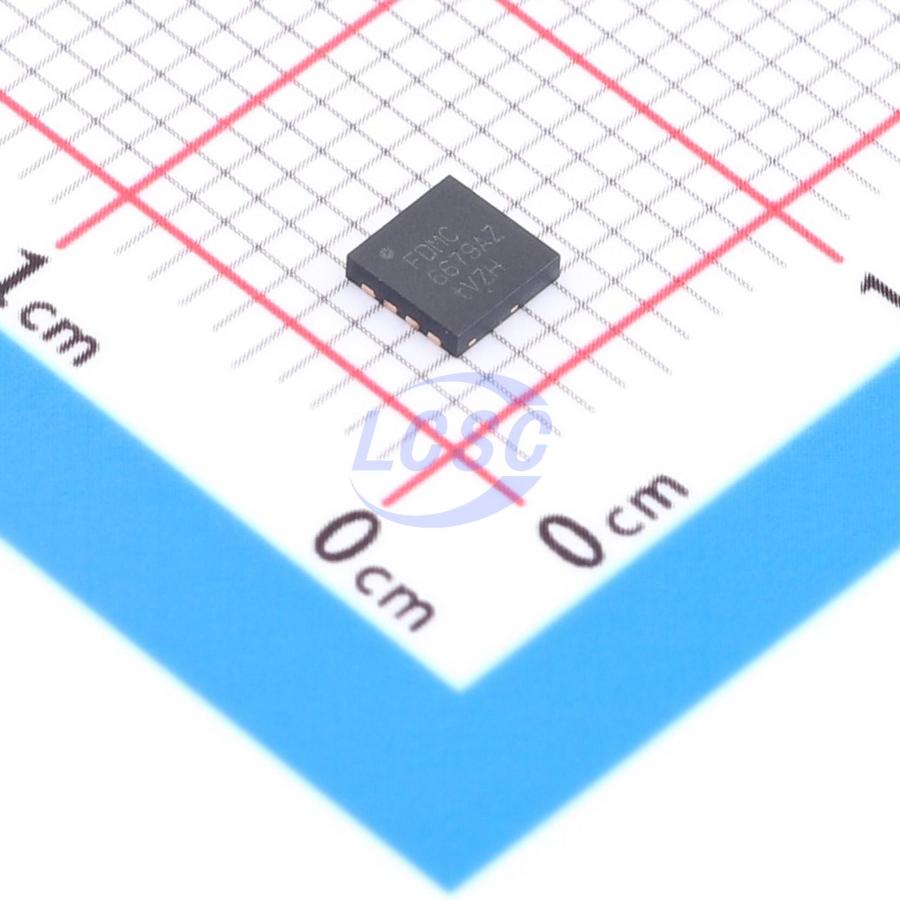

FDMC6679AZ
P-Channel 30V 20A 41W Surface Mount WDFN-8(3.3x3.3)
WDFN-8(3.3x3.3)ROHS3 CompliantActive
MOSFET P-CH 30V 20A WDFN-8(3.3x3.3)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC6679AZ
- Store part #
- C606102
- Package / case
- WDFN-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
194 in stock
#C606102
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.47 | ₹122.47 |
| 10+ | ₹99.41 | ₹994.10 |
| 30+ | ₹87.89 | ₹2,636.70 |
| 100+ | ₹76.36 | ₹7,636.00 |
| 500+ | ₹69.62 | ₹34,810.00 |
| 1,000+ | ₹65.91 | ₹65,910.00 |
1 × ₹122.47
₹122.47
excl. GST
₹144.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC6679AZ
₹122.47 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 3.97nF
- Pd - Power Dissipation
- 41W
- Reverse Transfer Capacitance (Crss)
- 750pF
- RDS(on)
- 18mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 91nC@10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.079 g
Overview
The FDMC6679AZ has been designed to minimize losses in load switch applications. Advancements in both silicon and package technologies have been combined to offer the lowest rDS(on) and ESD protection.
Applications
- Load Switch in Notebook and Server
- Notebook Battery Pack Power Management
Key features
- Max rDS(on)=10 mΩ at VGS=-10 Vz, ID=-11.5 A
- Max rDS(on)=18 mΩ at VGS=-4.5 V, ID=-8.5 A
- HBM ESD Protection Level of 8 kV Typical
- Extended VGSS range (-25 V) for Battery Applications
- High Performance Trench Technology for Extremely Low rDS(on)
- High Power and Current Handling Capability
- This Device is Pb-Free and Halide Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSC85P03A#C20625161Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 15 | ₹33.23 · 15 in stock | View |
 | JSM7409B#C2874718JSMSEMI · PDFN3333-8L | JSMSEMI | PDFN3333-8L | 5,230 | ₹37.72 · 5,230 in stock | View |
 | AONR21357#C7603350TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 2,770 | ₹34.37 · 2,770 in stock | View |
 | BMQ03P700#C54741137BORN · PDFN-8L(3.3x3.3) | BORN | PDFN-8L(3.3x3.3) | 6,635 | ₹29.05 · 6,635 in stock | View |
 | SISH103DN-T1-GE3#C20346153VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 45 | ₹82.36 · 45 in stock | View |
