onsemiDatasheet (PDF)

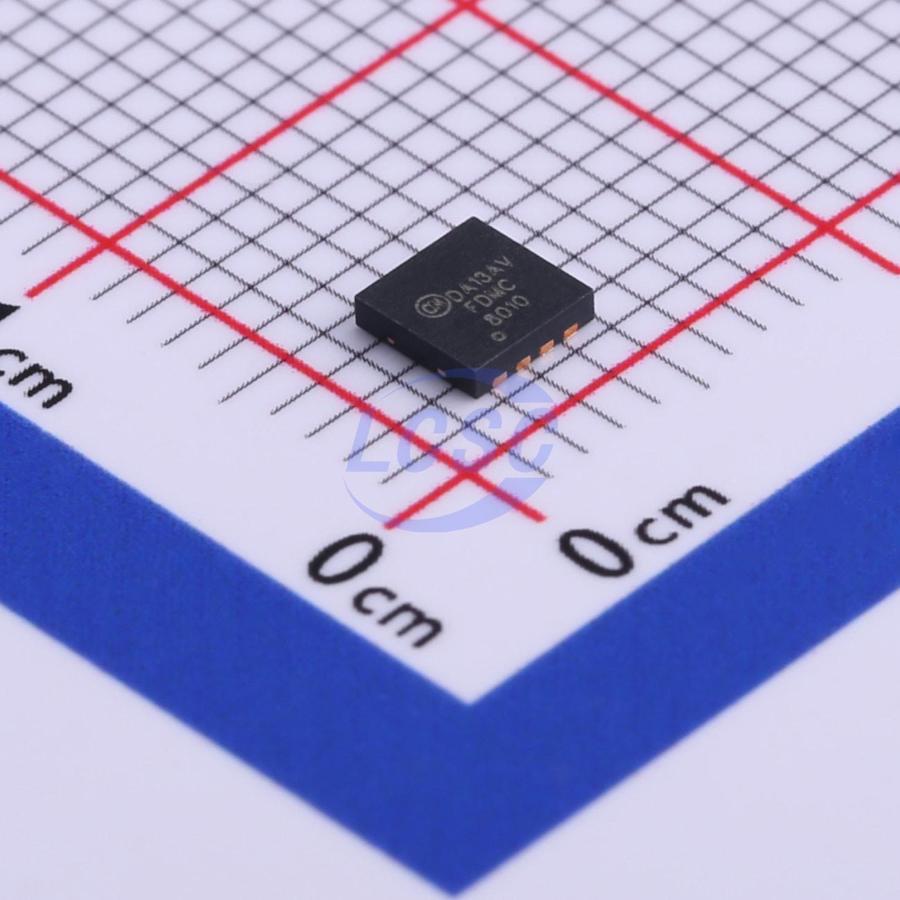

FDMC8010
N-Channel 30V 75A 54W Surface Mount PQFN-8
PQFN-8ROHS3 CompliantActive
MOSFET N-CH 30V 75A PQFN-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC8010
- Store part #
- C512897
- Package / case
- PQFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
123 in stock
#C512897
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.96 | ₹137.96 |
| 10+ | ₹111.83 | ₹1,118.30 |
| 30+ | ₹98.88 | ₹2,966.40 |
| 100+ | ₹85.93 | ₹8,593.00 |
| 500+ | ₹78.16 | ₹39,080.00 |
| 1,000+ | ₹74.27 | ₹74,270.00 |
1 × ₹137.96
₹137.96
excl. GST
₹162.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC8010
₹137.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.57nF
- Ciss-Input Capacitance
- 5.86nF
- Pd - Power Dissipation
- 54W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 1.8mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 67nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
This N−Channel MOSFET is produced using ON Semiconductor’s advanced POWERTRENCH process that has been especially tailored to minimize the on−state resistance. This device is well suited for applications where ultra low rDS(on) is required in small spaces such as High performance VRM, POL and Oring functions.
Applications
- DC − DC Buck Converters
- Point of Load
- High Efficiency Load Switch and Low Side Switching
- Oring FET
Key features
- Max rDS(on)=1.3 mΩ at VGS=10 V, ID=30 A
- Max rDS(on)=1.8 mΩ at VGS=4.5 Vz, ID=25 A
- High Performance Technology for Extremely Low rDS(on)
- These Devices are Pb−Free and are RoHS Compliant
