onsemiDatasheet (PDF)

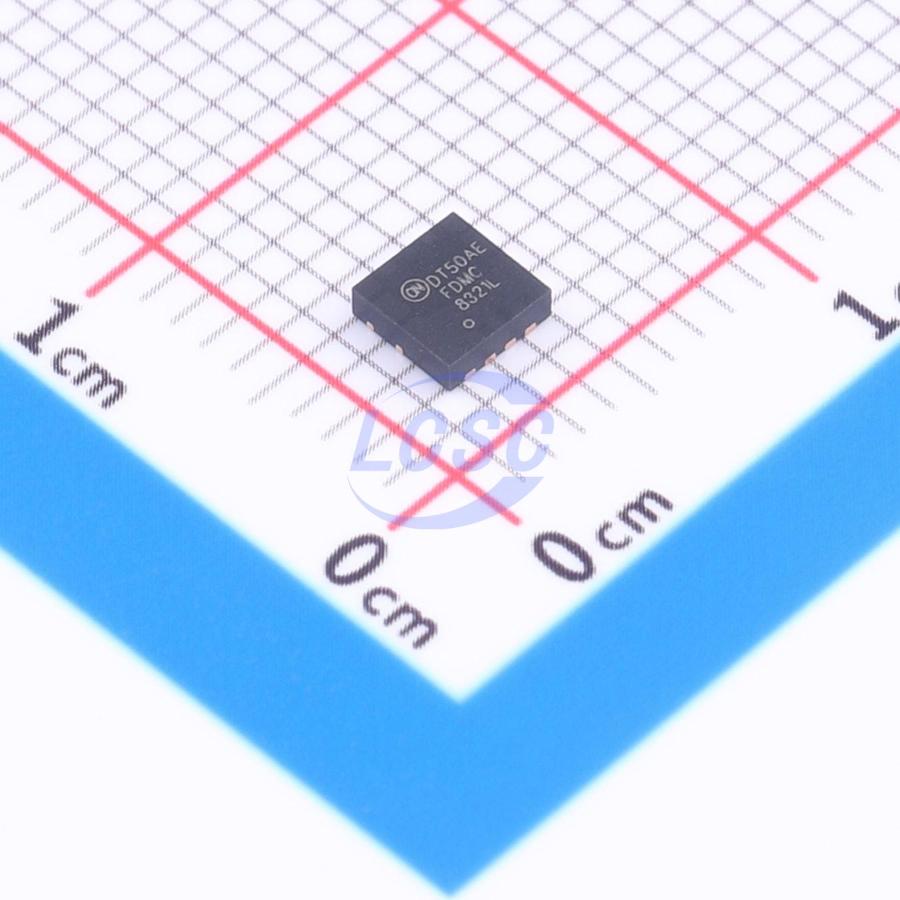

FDMC8321L
40V 49A 40W 2.5mΩ@10V 1 N-channel N-Channel PQFN-8 Single FETs, MOSFETs RoHS
PQFN-8ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDMC8321L
- Store part #
- C336041
- Package / case
- PQFN-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C336041
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹379.44 | ₹379.44 |
| 10+ | ₹371.19 | ₹3,711.90 |
| 30+ | ₹365.56 | ₹10,966.80 |
| 100+ | ₹360.13 | ₹36,013.00 |
1 × ₹379.44
₹379.44
excl. GST
₹447.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMC8321L
₹379.44 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 1.33nF
- Current - Continuous Drain(Id)
- 49A
- Ciss-Input Capacitance
- 3.9nF
- Pd - Power Dissipation
- 40W
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 2.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.182 g
Overview
This N-channel MOSFET is designed to improve overall efficiency and minimize switching node ringing in DC/DC converters using synchronous or conventional switching PWM controllers. It is optimized for low gate charge, low rDS(on), fast switching speed, and body diode reverse recovery performance.
Applications
- Synchronous rectifier
- Load switch / OR-ing switch
- Motor switch
Key features
- Maximum rDS(on) = 2.5 mΩ at VGS = 10 V, ID = 22 A
- Maximum rDS(on) = 4.1 mΩ at VGS = 4.5 V, ID = 18 A
- Advanced combination of packaging and silicon technology for low rDS(on) and high efficiency
- Next-generation enhanced body diode technology with soft-recovery characteristics
- 100% UIL tested
- RoHS compliant
