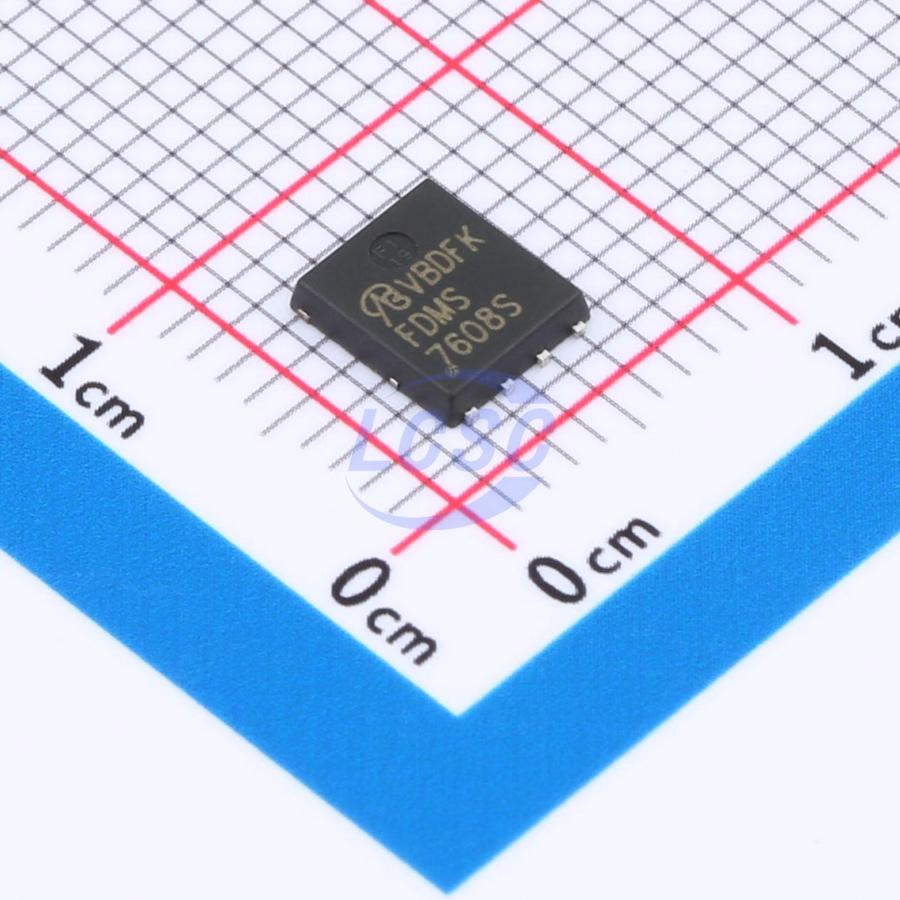

FDMS7608S-VB
N-Channel Array 30V 60A 56W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH ARR 30V 60A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDMS7608S-VB
- Store part #
- C20755136
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C20755136
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.37 | ₹118.37 |
| 10+ | ₹95.61 | ₹956.10 |
| 30+ | ₹84.04 | ₹2,521.20 |
| 100+ | ₹72.86 | ₹7,286.00 |
| 500+ | ₹64.88 | ₹32,440.00 |
| 1,000+ | ₹61.48 | ₹61,480.00 |
1 × ₹118.37
₹118.37
excl. GST
₹139.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FDMS7608S-VB
₹118.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 257pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 56W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 3.4mΩ@10V;4.3mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- Active clamp circuit in DC/DC power supplies
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single pulse avalanche ruggedness (UIS)
- 100% Rq tested
- RoHS compliant per directive 2002/95/EC
