onsemiDatasheet (PDF)

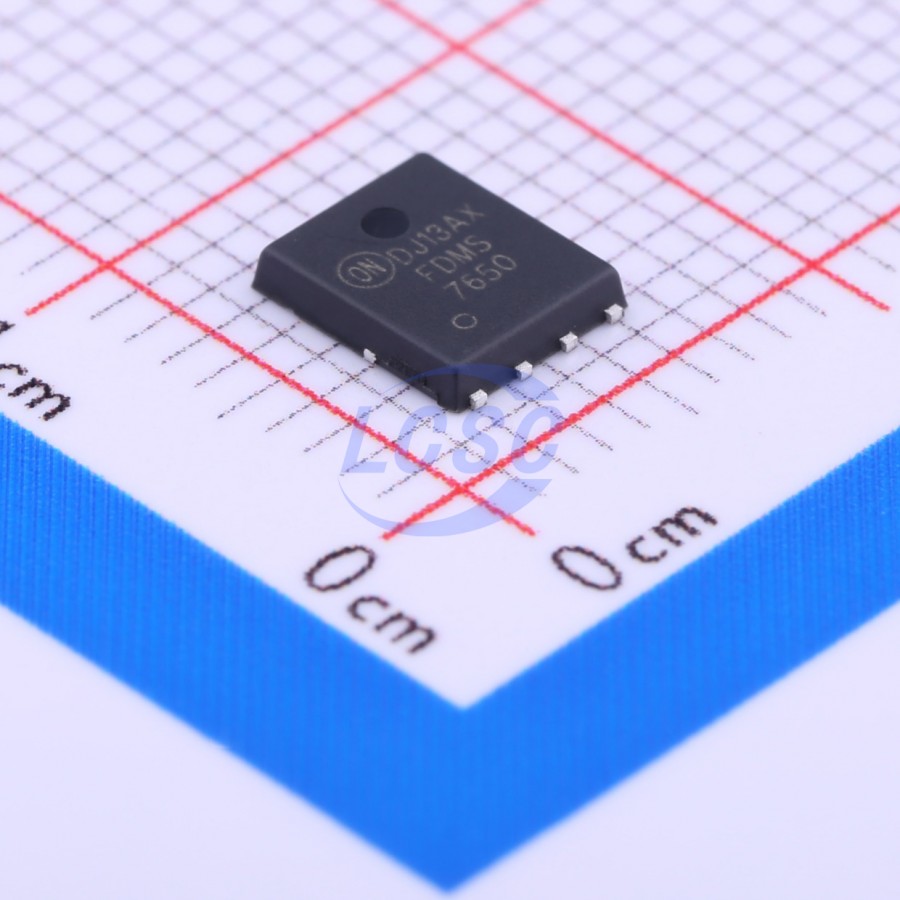

FDMS7650
104W 30V 267A 1.55mΩ@4.5V 1 N-channel N-Channel PQFN-8(5x6) Single FETs, MOSFETs RoHS
PQFN-8(5x6)ROHS3 CompliantActive
N-Channel MOSFET, Current: 267A, Voltage: 30V
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS7650
- Store part #
- C255598
- Package / case
- PQFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,048 in stock
#C255598
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹302.36 | ₹302.36 |
| 10+ | ₹257.99 | ₹2,579.90 |
| 30+ | ₹230.15 | ₹6,904.50 |
| 100+ | ₹179.90 | ₹17,990.00 |
| 500+ | ₹167.07 | ₹83,535.00 |
| 1,000+ | ₹161.41 | ₹1,61,410.00 |
1 × ₹302.36
₹302.36
excl. GST
₹356.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS7650
₹302.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 4.055nF
- Ciss-Input Capacitance
- 14.965nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 267A
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 1.55mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 209nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.195 g
Overview
This N-channel MOSFET is designed to improve overall efficiency and minimize switching node ringing in DC/DC converters using synchronous or conventional switching PWM controllers. It is optimized for low gate charge and ultra-low R<sub>DS(ON)</sub>.
Applications
- OR-ing diode (OringFET)
- Synchronous rectifier
Key features
- Maximum r DS(on) = 0.99 mΩ at VGS = 10 V, ID = 36 A
- Maximum r DS(on) = 1.55 mΩ at VGS = 4.5 V, ID = 32 A
- Advanced package and silicon combination for low RDS(ON) and high efficiency
- MSL1 robust package design
- 100% UI1L tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFH5300TRPBF#C2763849Infineon · PQFN-8(5x6) | Infineon | PQFN-8(5x6) | 1,927 | ₹88.20 · 1,927 in stock | View |
 | IRFH7004TRPBF#C112334Infineon · PQFN-8(4.9x5.8) | Infineon | PQFN-8(4.9x5.8) | 12,481 | ₹162.20 · 12,481 in stock | View |
