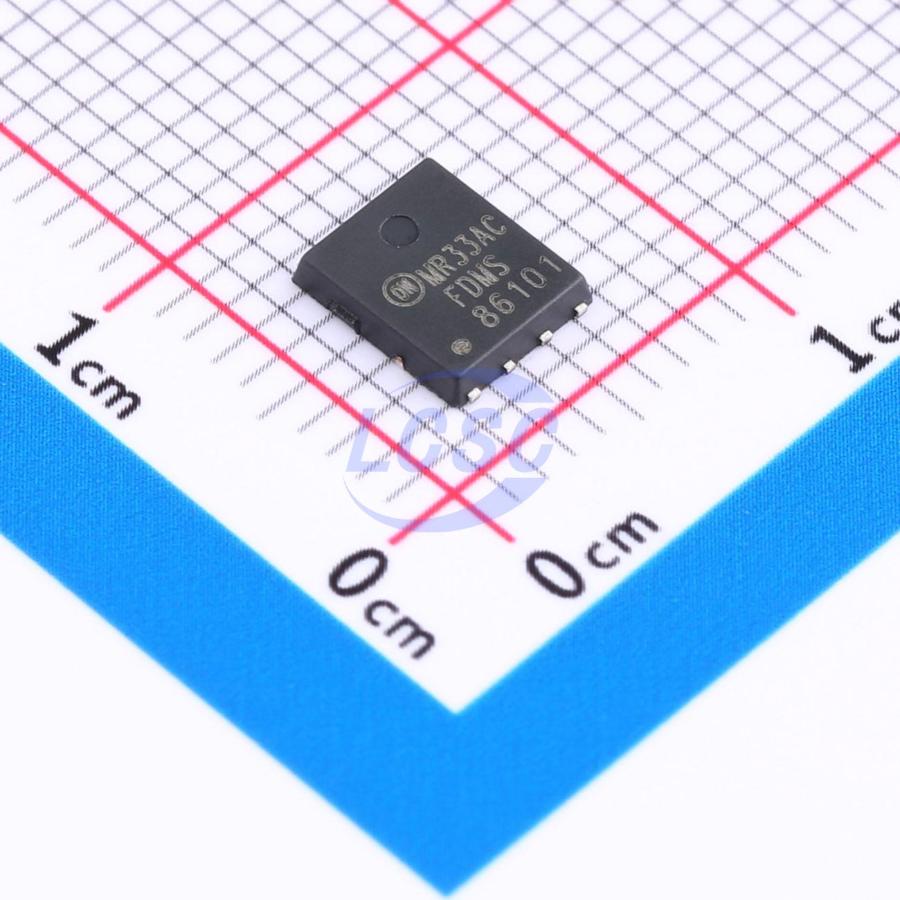

FDMS86101
N-Channel 100V 60A 104W Power56-8
Power56-8ROHS3 CompliantActive
MOSFET N-CH 100V 60A Power56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS86101
- Store part #
- C102622
- Package / case
- Power56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
174 in stock
#C102622
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.57 | ₹143.57 |
| 10+ | ₹118.59 | ₹1,185.90 |
| 30+ | ₹104.91 | ₹3,147.30 |
| 100+ | ₹89.49 | ₹8,949.00 |
| 500+ | ₹76.46 | ₹38,230.00 |
| 1,000+ | ₹73.41 | ₹73,410.00 |
1 × ₹143.57
₹143.57
excl. GST
₹169.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS86101
₹143.57 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 610pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 13.5mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 55nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
This N-Channel MOSFET is produced using advanced Power Trench® process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance. Advanced Package and Silicon combination for low rDS(on) and high efficiency.
Applications
- DC-DC Conversion
- Power 56
Key features
- Max rDS(on) = 8 mΩ at VGS = 10 V, ID = 13 A
- Max rDS(on) = 13.5 mΩ at VGS = 6 V, ID = 9.5 A
- MSL1 robust package design
- 100% UIL tested
- 100% Rg tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM100VAND56#C46472315TECH PUBLIC · DFN-8(5x6) | TECH PUBLIC | DFN-8(5x6) | 157 | ₹68.41 · 157 in stock | View |
 | AGM13T05A#C22386152AGMSEMI · PDFN-8(5x6) | AGMSEMI | PDFN-8(5x6) | 1 | ₹121.48 · 1 in stock | View |
 | LN7910DT1WG#C2936692LRC · DFN-8(5x6) | LRC | DFN-8(5x6) | 1,461 | ₹163.59 · 1,461 in stock | View |
 | MGC066N10N#C30232454Megain · PDFN5x6-8 | Megain | PDFN5x6-8 | 445 | ₹47.14 · 445 in stock | View |
 | RS6P100BHTB1#C5870432ROHM · HSOP-8 | ROHM | HSOP-8 | 2 | ₹639.01 · 2 in stock | View |
