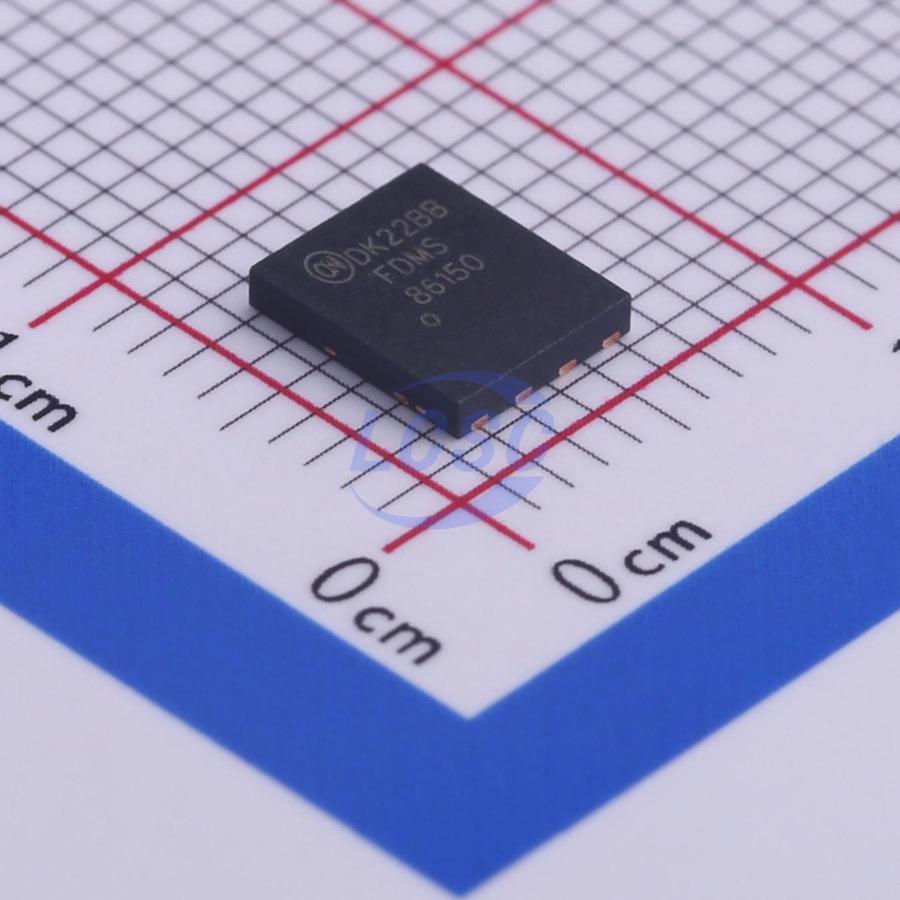

FDMS86150
N-Channel 100V 80A 156W Power56-8
Power56-8ROHS3 CompliantActive
MOSFET N-CH 100V 80A Power56-8
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS86150
- Store part #
- C455161
- Package / case
- Power56-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C455161
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹427.00 | ₹427.00 |
| 10+ | ₹362.46 | ₹3,624.60 |
| 30+ | ₹322.04 | ₹9,661.20 |
| 100+ | ₹280.54 | ₹28,054.00 |
| 500+ | ₹261.85 | ₹1,30,925.00 |
| 1,000+ | ₹253.80 | ₹2,53,800.00 |
1 × ₹427.00
₹427.00
excl. GST
₹503.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS86150
₹427.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 696pF
- Ciss-Input Capacitance
- 3.055nF
- Pd - Power Dissipation
- 156W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 29pF
- RDS(on)
- 7.8mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor‘s advanced PowerTrench® process that incorporates Shielded Gate technology. This process has been optimized for the on-state resistance and yet maintain superior switching performance.
Applications
- Primary DC-DC MOSFET
- Secondary Synchronous Rectifier
- Load Switch
Key features
- Shielded Gate MOSFET Technology
- Max rDS(on)=4.85 mΩ at VGS = 10 Vs , ID=16 A
- Max rDS(on)=7.8 mΩ at VGS = 6 V , ID=13 A
- Advanced Package and Silicon combination for low rDS(on) and high efficiency
- MSL1 robust package design
- 100% UIL tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FTF068N10G#C55115162ARK micro · PDFN-8(5x6) | ARK micro | PDFN-8(5x6) | 60 | ₹76.32 · 60 in stock | View |
 | HSBA087N15#C53244065HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 2,557 | ₹171.14 · 2,557 in stock | View |
 | NH4R5T2G#C54300821DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 2,603 | ₹70.25 · 2,603 in stock | View |
 | DON110N12T#C48542685DOINGTER · DFN5x6-8 | DOINGTER | DFN5x6-8 | 2,111 | ₹66.71 · 2,111 in stock | View |
| HD510N080SG#C53664493R+O · PDFN-8(5x6) | R+O | PDFN-8(5x6) | 4,980 | ₹77.66 · 4,980 in stock | View | |
