VBsemi ElecDatasheet (PDF)

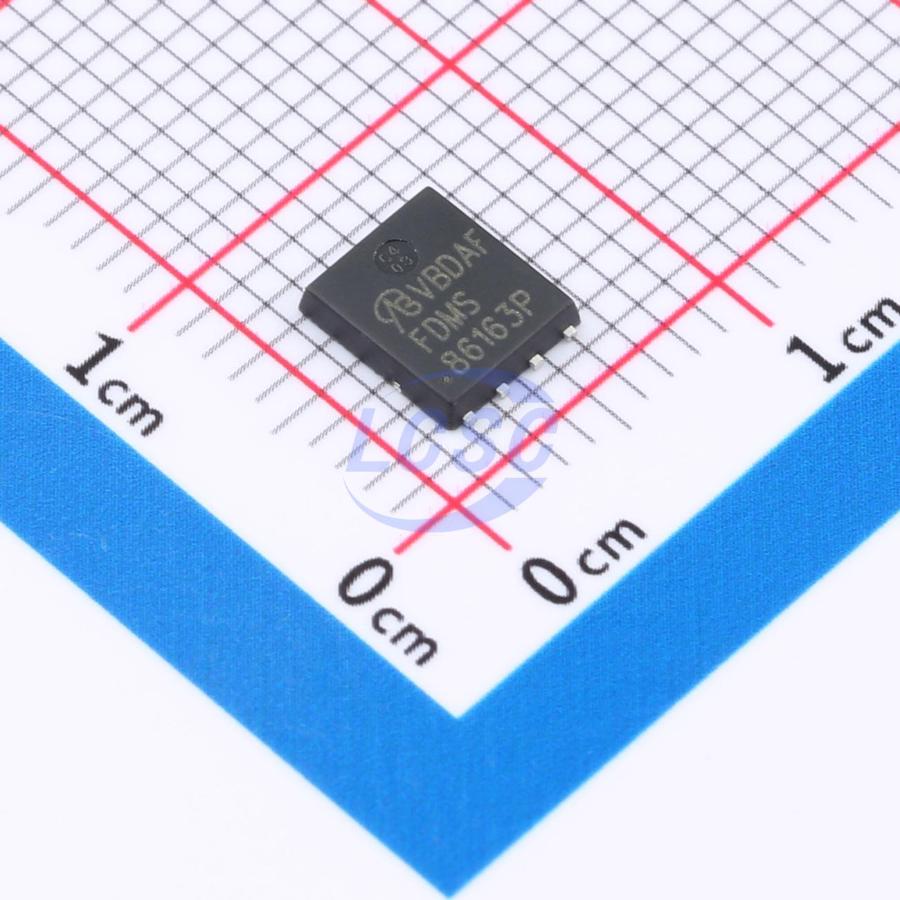

FDMS86163P-VB
P-Channel 100V 28A Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET P-CH 100V 28A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDMS86163P-VB
- Store part #
- C47993898
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993898
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.94 | ₹232.94 |
| 10+ | ₹198.33 | ₹1,983.30 |
| 30+ | ₹179.39 | ₹5,381.70 |
| 100+ | ₹158.05 | ₹15,805.00 |
| 500+ | ₹124.31 | ₹62,155.00 |
| 1,000+ | ₹120.17 | ₹1,20,170.00 |
1 × ₹232.94
₹232.94
excl. GST
₹274.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FDMS86163P-VB
₹232.94 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 28A
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 10.4W
- Reverse Transfer Capacitance (Crss)
- 290pF
- RDS(on)
- 36mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 76nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% single-pulse avalanche tested
