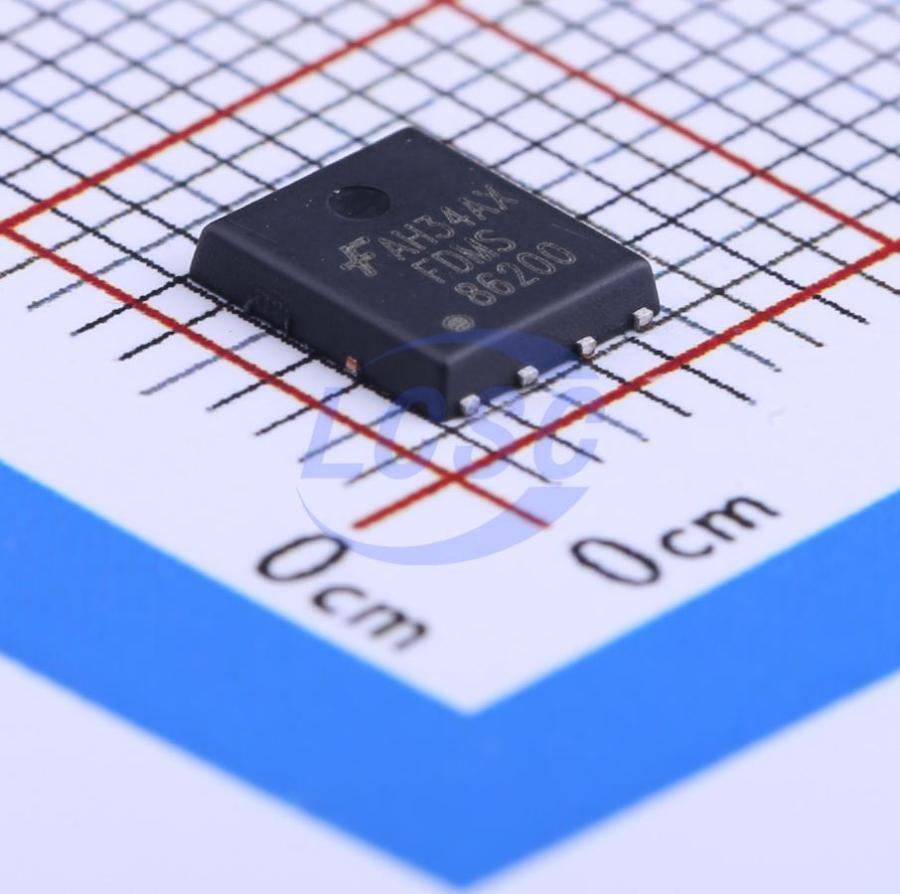

FDMS86200
N-Channel 150V Surface Mount PDFN-8(4.9x5.8)
PDFN-8(4.9x5.8)ROHS3 CompliantActive
MOSFET N-CH 150V PDFN-8(4.9x5.8)
- Manufacturer
- onsemi
- Manufacturer part #
- FDMS86200
- Store part #
- C128799
- Package / case
- PDFN-8(4.9x5.8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
988 in stock
#C128799
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.75 | ₹152.75 |
| 10+ | ₹125.16 | ₹1,251.60 |
| 30+ | ₹109.95 | ₹3,298.50 |
| 100+ | ₹92.78 | ₹9,278.00 |
| 500+ | ₹84.96 | ₹42,480.00 |
| 1,000+ | ₹81.71 | ₹81,710.00 |
1 × ₹152.75
₹152.75
excl. GST
₹180.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDMS86200
₹152.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 2.715nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 21mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.213 g
Overview
This N-Channel MOSFET is produced using advanced PowerTrench process that incorporates Shielded Gate technology. This process has been optimized for the on-state resistance and yet maintain superior switching performance.
Applications
- DC-DC Conversion
Key features
- Shielded Gate MOSFET Technology
- Max rDS(on) = 18 mΩ at VGS = 10 V, ID = 9.6 A
- Max rDS(on) = 21 mΩ at VGS = 6 V, VD = 8.8 A
- Advanced Package and Silicon combination for low rDS(on) and high efficiency
- MSL1 robust package design
- 100% UIL tested
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN7910DT1WG#C2936692LRC · DFN-8(5x6) | LRC | DFN-8(5x6) | 1,461 | ₹163.59 · 1,461 in stock | View |
 | AON6250#C454183AOS · PDFN-8(5.8x4.9) | AOS | PDFN-8(5.8x4.9) | 2,903 | ₹131.47 · 2,903 in stock | View |
 | BSC190N15NS3G-VB#C20417653VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 1 | ₹252.90 · 1 in stock | View |
| XRS50N15F#C42457103XNRUSEMI · PDFN-8L(5x6) | XNRUSEMI | PDFN-8L(5x6) | 4,846 | ₹93.89 · 4,846 in stock | View | |
 | BSC160N15NS5#C459172Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 4,771 | ₹163.92 · 4,771 in stock | View |
