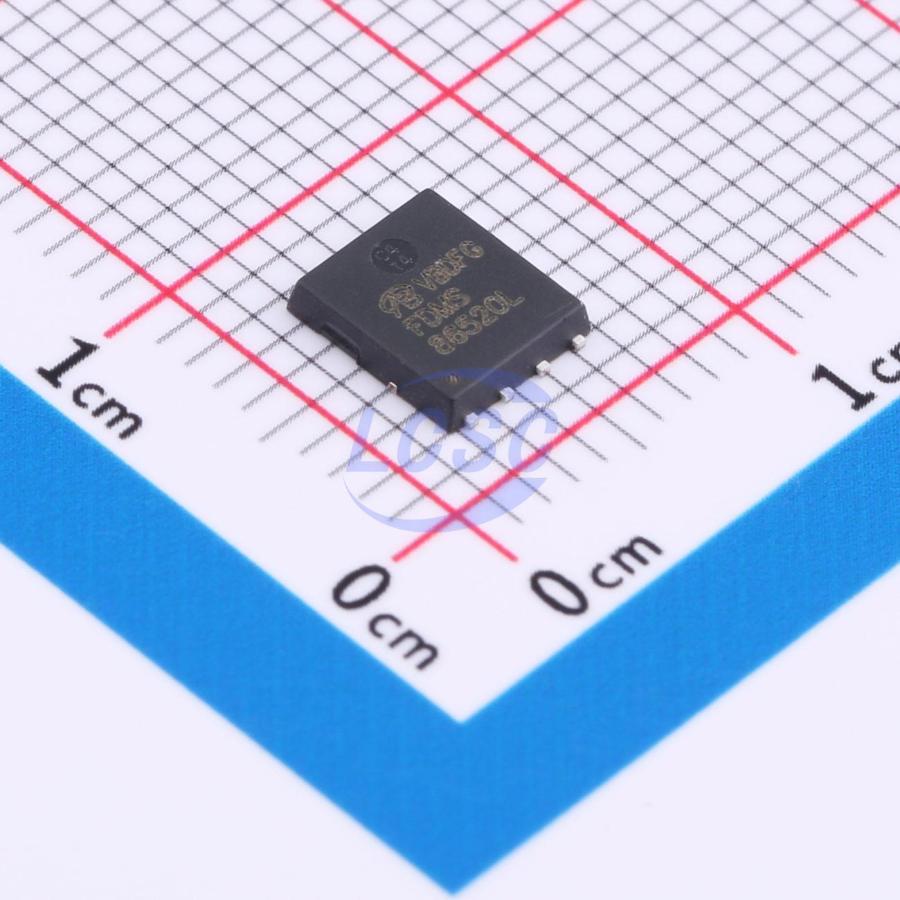

FDMS86520L-VB
N-Channel 60V 80A 136W Surface Mount DFN5x6-8
DFN5x6-8ROHS CompliantActive
MOSFET N-CH 60V 80A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDMS86520L-VB
- Store part #
- C7568830
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C7568830
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹172.04 | ₹172.04 |
| 10+ | ₹144.31 | ₹1,443.10 |
| 30+ | ₹128.98 | ₹3,869.40 |
| 100+ | ₹111.75 | ₹11,175.00 |
| 500+ | ₹92.85 | ₹46,425.00 |
| 1,000+ | ₹89.28 | ₹89,280.00 |
1 × ₹172.04
₹172.04
excl. GST
₹203.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FDMS86520L-VB
₹172.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- Material classification: RoHS compliant
