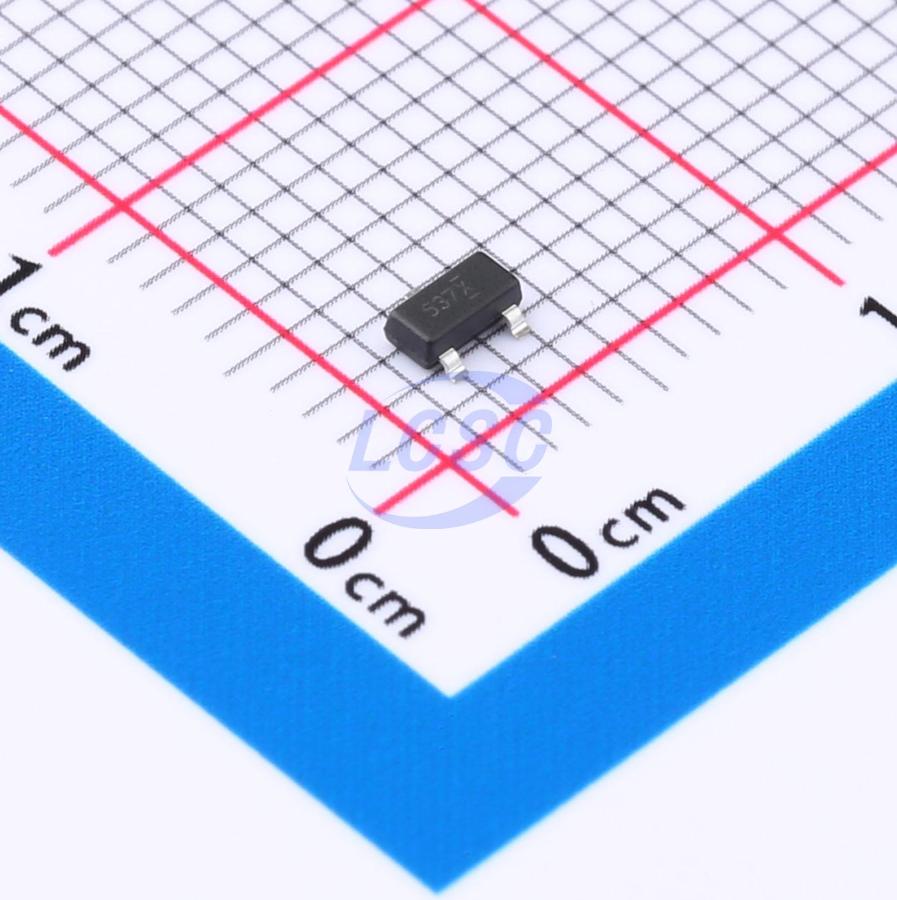

FDN537N
N-Channel 30V 6.5A 1.5W Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
MOSFET N-CH 30V 6.5A SOT-23-3
- Manufacturer
- onsemi
- Manufacturer part #
- FDN537N
- Store part #
- C3280165
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
112 in stock
#C3280165
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.07 | ₹122.07 |
| 10+ | ₹98.44 | ₹984.40 |
| 30+ | ₹86.74 | ₹2,602.20 |
| 100+ | ₹71.77 | ₹7,177.00 |
| 500+ | ₹64.84 | ₹32,420.00 |
| 1,000+ | ₹61.15 | ₹61,150.00 |
1 × ₹122.07
₹122.07
excl. GST
₹144.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDN537N
₹122.07 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 465pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.5A
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 36mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.4nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor‘s advanced Power Trench® process that has been optimized for rDS(on), switching performance and ruggedness.
Applications
- Primary DC-DC Switch
Key features
- Max rDS(on)=23 mΩ at VGS=10 V, ID=6.5 A
- Max rDS(on)=36 mΩ at VGS=4.5 V, ID=6.0 A
- High performance trench technology for extremely low rDS(on)
- High power and current handling capability in a widely used surface mount package
- Fast switching speed
- 100% UIL Tested
- RoHS Compliant
