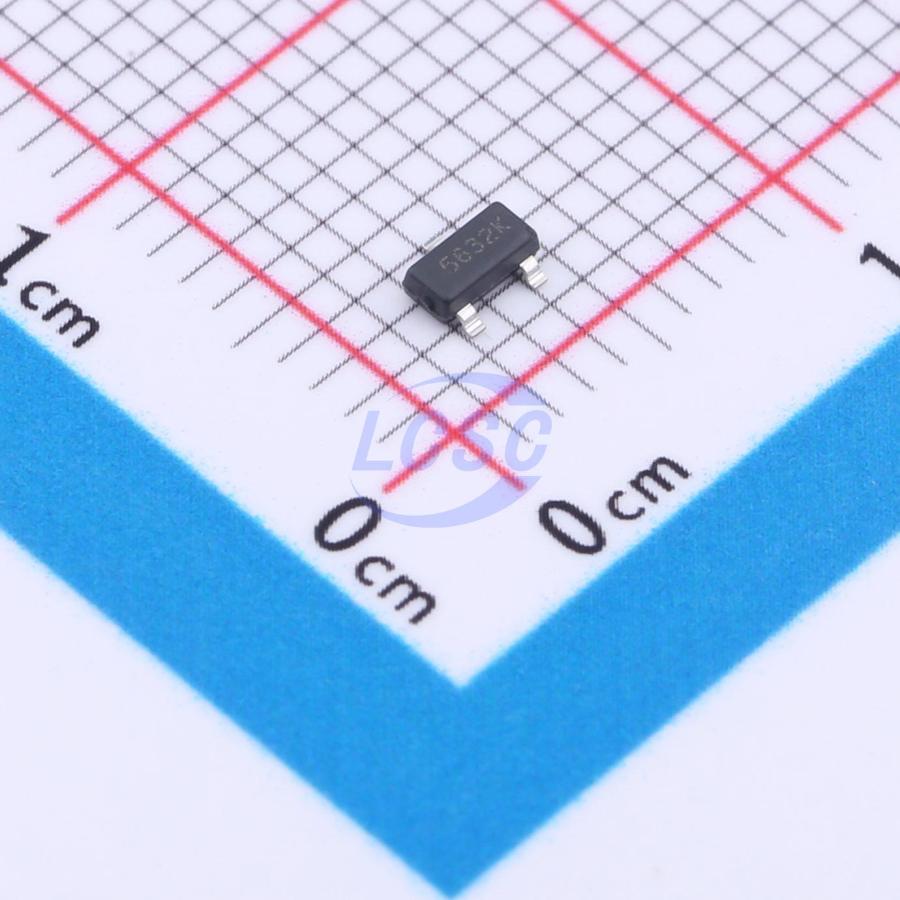

FDN5632N-F085
N-Channel 60V 1.7A 1.1W Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
MOSFET N-CH 60V 1.7A SOT-23-3
- Manufacturer
- onsemi
- Manufacturer part #
- FDN5632N-F085
- Store part #
- C891117
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
276 in stock
#C891117
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.33 | ₹87.33 |
| 10+ | ₹70.57 | ₹705.70 |
| 30+ | ₹62.08 | ₹1,862.40 |
| 100+ | ₹53.79 | ₹5,379.00 |
| 500+ | ₹48.79 | ₹24,395.00 |
| 1,000+ | ₹46.17 | ₹46,170.00 |
1 × ₹87.33
₹87.33
excl. GST
₹103.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDN5632N-F085
₹87.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 60pF
- Ciss-Input Capacitance
- 475pF
- Pd - Power Dissipation
- 1.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 1.7A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 98mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
This N-channel PowerTrench MOSFET is manufactured using Fairchild's advanced PowerTrench process, which is specially optimized to minimize on-resistance while maintaining low gate charge for superior switching performance.
Applications
- DC-DC converters
- Motor drivers
Key features
- RDS(on) = 98 mΩ at VGS = 4.5 V, ID = 1.6 A
- RDS(on) = 82 mΩ at VGS = 10 V, ID = 1.7 A
- Typical Qg(total) = 9.2 nC at VGS = 10 V
- Low Miller charge
- Unclamped inductive switching capability
- AEC Q101 qualified
- RoHS compliant
