onsemiDatasheet (PDF)

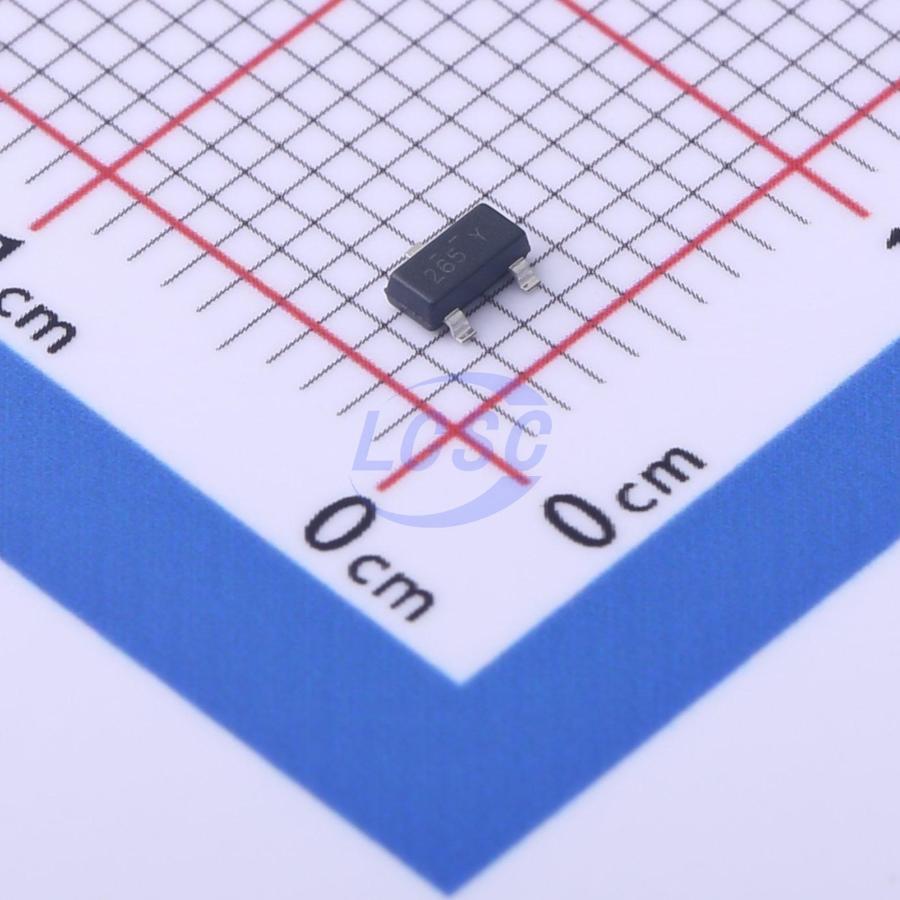

FDN86265P
1.5W 150V 800mA 1.2Ω@10V 1 P-Channel P-Channel SOT-23-3 Single FETs, MOSFETs RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- FDN86265P
- Store part #
- C891119
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,169 in stock
#C891119
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.33 | ₹127.33 |
| 10+ | ₹107.56 | ₹1,075.60 |
| 30+ | ₹97.78 | ₹2,933.40 |
| 100+ | ₹88.01 | ₹8,801.00 |
| 500+ | ₹82.13 | ₹41,065.00 |
| 1,000+ | ₹79.09 | ₹79,090.00 |
1 × ₹127.33
₹127.33
excl. GST
₹150.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FDN86265P
₹127.33 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 210pF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 800mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4.1nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
This P-channel MOSFET is manufactured using the advanced PowerTrench® process, which is optimized for on-resistance while maintaining excellent switching performance.
Applications
- Active clamp switch - Load switch
Key features
- Maximum rDS(on) = 1.2 Ω at VGS = -10 V, ID = -0.8 A
- Maximum rDS(on) = 1.4 Ω at VGS = -6 V, ID = -0.7 A
- Medium voltage P-channel silicon technology with ultra-low on-resistance optimized for low Qg
- Optimized for fast switching and load switch applications
- 100% UIL tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSS2P15#C2987710HUASHUO · SOT-23L | HUASHUO | SOT-23L | 17,100 | ₹36.45 · 17,100 in stock | View |
 | UF07P15G#C28642317TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,215 | ₹32.41 · 1,215 in stock | View |
 | YFW2P15MI#C25836757YFW · SOT-23-3L | YFW | SOT-23-3L | 740 | ₹39.69 · 740 in stock | View |
 | SQ2325ES-T1_GE3#C144963VISHAY · SOT-23 | VISHAY | SOT-23 | 1,647 | ₹81.17 · 1,647 in stock | View |
 | HSS2P20#C22359220HUASHUO · SOT-23L | HUASHUO | SOT-23L | 6,485 | ₹36.57 · 6,485 in stock | View |
