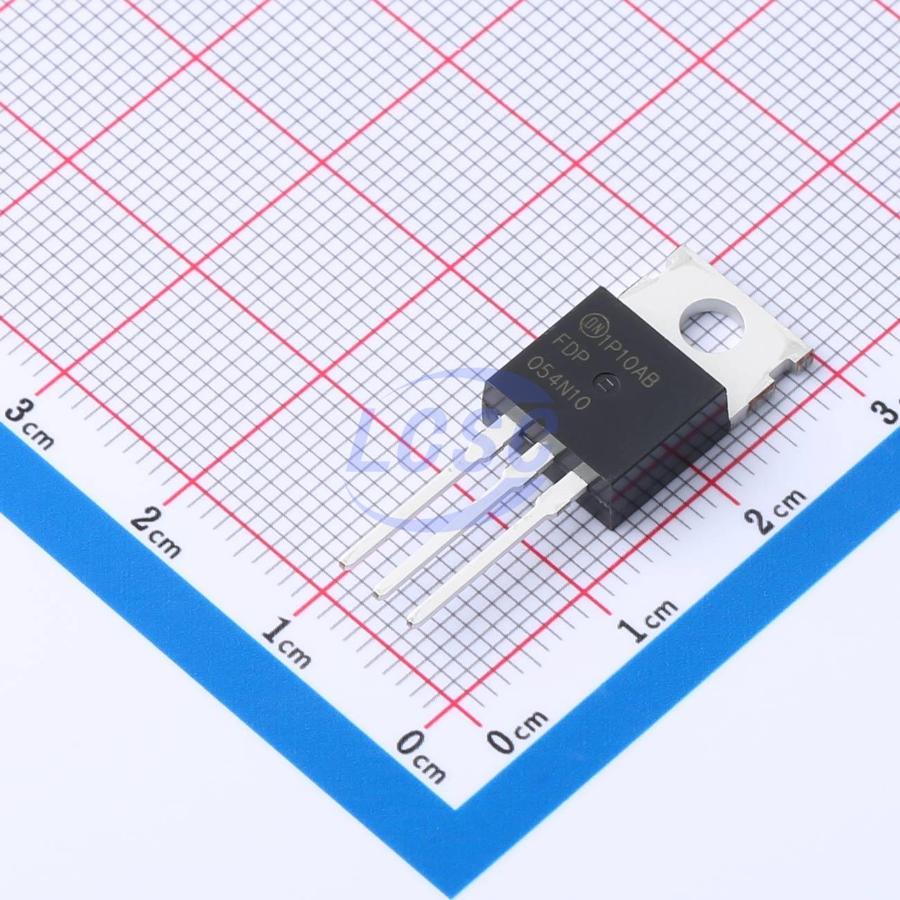

FDP054N10
N-Channel 100V 144A 263W Through Hole TO-220
TO-220ROHS3 CompliantDiscontinued
MOSFET N-CH 100V 144A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FDP054N10
- Store part #
- C605049
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C605049
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹563.40 | ₹563.40 |
| 10+ | ₹536.87 | ₹5,368.70 |
| 50+ | ₹521.22 | ₹26,061.00 |
| 100+ | ₹505.35 | ₹50,535.00 |
| 500+ | ₹497.95 | ₹2,48,975.00 |
| 1,000+ | ₹494.68 | ₹4,94,680.00 |
1 × ₹563.40
₹563.40
excl. GST
₹664.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDP054N10
₹563.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 935pF
- Ciss-Input Capacitance
- 13.28nF
- Pd - Power Dissipation
- 263W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 144A
- Reverse Transfer Capacitance (Crss)
- 390pF
- RDS(on)
- 4.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 203nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.946 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Applications
- Synchronous Rectification for ATX / Server / Telecom PSU
- Battery Protection Circuit
- Motor Drives and Uninterruptible Power Supplies
- Micro Solar Inverter
Key features
- High Performance Trench Technology for Extremely Low RDS(on)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFB4310ZPBF#C2655Infineon · TO-220-3 | Infineon | TO-220-3 | 9,498 | ₹156.31 · 9,498 in stock | View |
 | LWT1H04H8#C54221169Lewa Micro · TO-220AB | Lewa Micro | TO-220AB | 98 | ₹130.20 · 98 in stock | View |
 | BSP10NH045SK1#C54906913Bestirpower · TO-220-3L | Bestirpower | TO-220-3L | 120 | ₹80.87 · 120 in stock | View |
 | FDP045N10A-F102#C132693onsemi · TO-220 | onsemi | TO-220 | 56 | ₹365.51 · 56 in stock | View |
 | MOT180N10A#C52988978MOT · TO-220 | MOT | TO-220 | 50 | ₹198.99 · 50 in stock | View |
