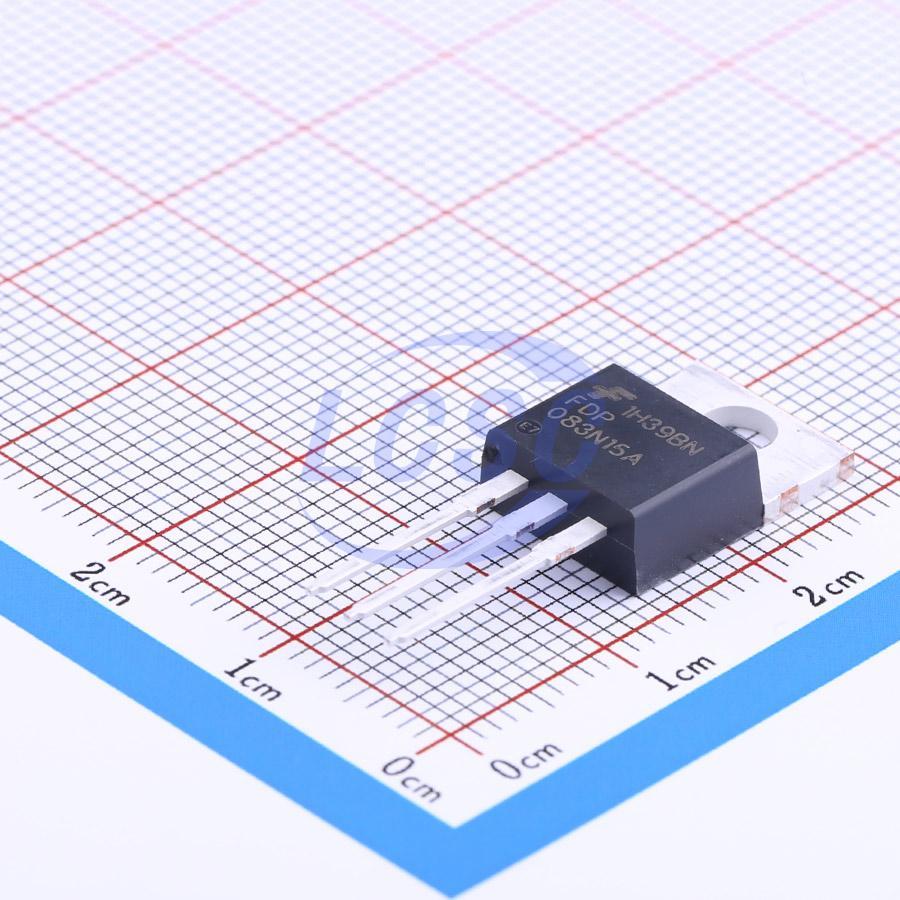

FDP083N15A-F102
N-Channel 150V 117A 294W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 150V 117A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FDP083N15A-F102
- Store part #
- C128791
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C128791
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹562.71 | ₹562.71 |
| 10+ | ₹504.90 | ₹5,049.00 |
| 50+ | ₹470.72 | ₹23,536.00 |
| 100+ | ₹435.90 | ₹43,590.00 |
| 500+ | ₹420.00 | ₹2,10,000.00 |
| 800+ | ₹412.68 | ₹3,30,144.00 |
1 × ₹562.71
₹562.71
excl. GST
₹664.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDP083N15A-F102
₹562.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.88nF
- Ciss-Input Capacitance
- 6.04nF
- Pd - Power Dissipation
- 294W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 117A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 8.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 84nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
This N-Channel MOSFET is produced using PowerTrench process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Applications
- Synchronous Rectification for ATX / Server / Telecom PSU
- Battery Protection Circuit
- Motor Drives and Uninterruptible Power Supplies
- Micro Solar Inverter
Key features
- RDS(on) = 6.85 mΩ (Typ.) @ VGS = 10 V, ID = 75 A
- Fast Switching Speed
- Low Gate Charge, QG = 64.5 nC (Typ.)
- High Performance Trench Technology for Extremely Low RDS(on)
- High Power and Current Handling Capability
- RoHS Compliant
