FDP085N10A-VB

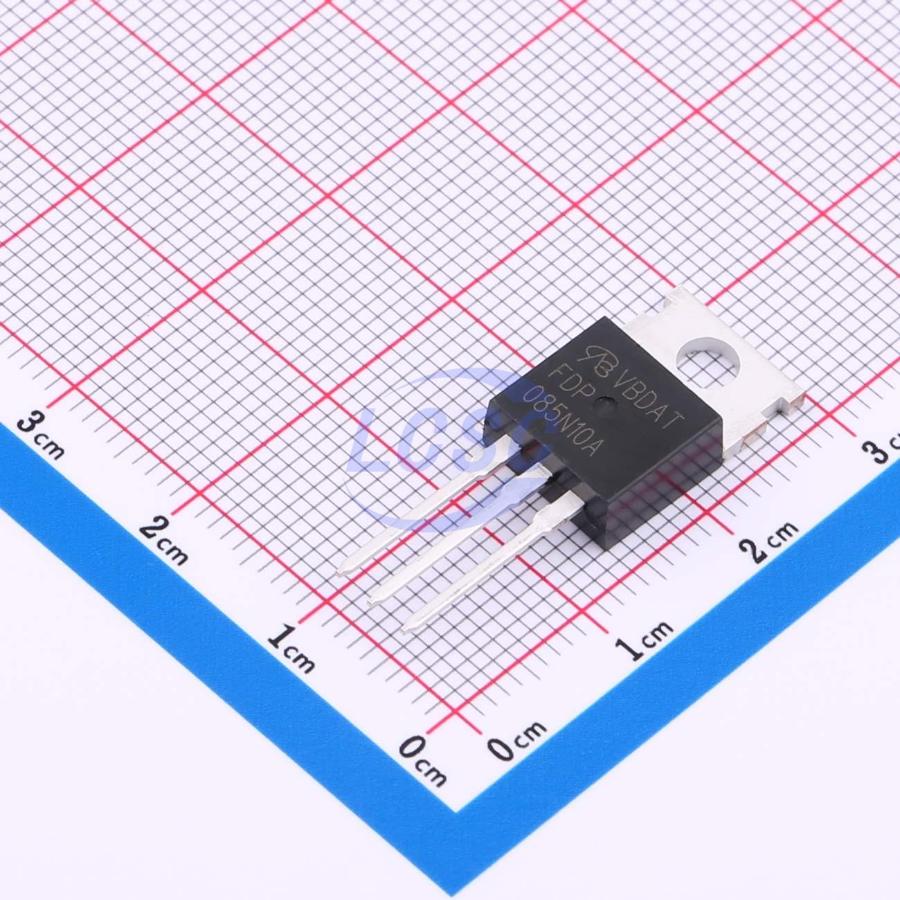

N-Channel 100V 100A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDP085N10A-VB
- Store part #
- C19190265
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C19190265
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.63 | ₹194.63 |
| 10+ | ₹166.98 | ₹1,669.80 |
| 50+ | ₹106.24 | ₹5,312.00 |
| 100+ | ₹92.53 | ₹9,253.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹194.63
₹194.63
excl. GST
₹229.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDP085N10A-VB
₹194.63 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 665pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 4.7nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 20mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- Motor drive
- Power bank
Key features
- TrenchFET Power MOSFET
- 175 °C Maximum Junction Temperature
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXTP80N10T-VB#C19190188VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 1 | ₹136.96 · 1 in stock | View |
 | AOT1100L-VB#C19632256VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹136.96 · 20 in stock | View |
 | STP80N10F7-VB#C20626342VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹142.63 · 10 in stock | View |
 | PSMN015-110P-VB#C20754954VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹142.63 · 10 in stock | View |
 | FDP090N10-VB#C20755034VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹142.63 · 2 in stock | View |
