onsemiDatasheet (PDF)

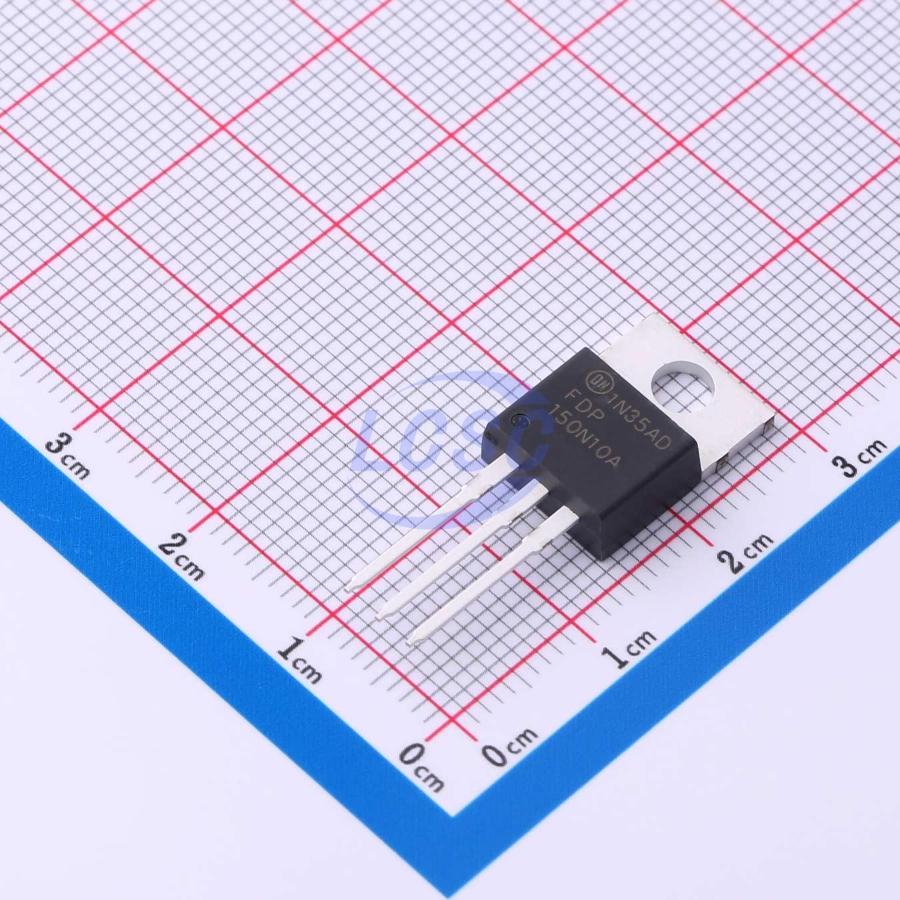

FDP150N10A-F102
91W 100V 50A 12.5mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 50A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FDP150N10A-F102
- Store part #
- C898590
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C898590
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹562.71 | ₹562.71 |
| 10+ | ₹504.68 | ₹5,046.80 |
| 30+ | ₹457.18 | ₹13,715.40 |
| 100+ | ₹422.14 | ₹42,214.00 |
| 500+ | ₹406.03 | ₹2,03,015.00 |
| 800+ | ₹398.71 | ₹3,18,968.00 |
1 × ₹562.71
₹562.71
excl. GST
₹664.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per tube
FDP150N10A-F102
₹562.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 267pF
- Ciss-Input Capacitance
- 1.08nF
- Pd - Power Dissipation
- 91W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 12.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 800 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.4 g
Overview
This N-channel MOSFET is manufactured using the advanced PowerTrench process, which is specifically tailored to minimize on-resistance while maintaining superior switching performance.
Applications
- Synchronous rectification for ATX/server/telecom PSU
- Motor drive and UPS
- Micro photovoltaic inverters
Key features
- RDS(on) = 12.5 mΩ (Typ.) @ VGS = 10 V, ID = 50 A
- Fast switching speed
- Low gate charge, QG = 16.2 nC (Typ.)
- High-performance trench technology for ultra-low RDS(on)
- High power and high current handling capability
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP010N13GTQ#C22466802Siliup · TO-220-3L | Siliup | TO-220-3L | 805 | ₹48.71 · 805 in stock | View |
 | TMG60N10P#C18186746Tritech-MOS · TO-220AB | Tritech-MOS | TO-220AB | 70 | ₹75.46 · 70 in stock | View |
| TMGN10060P#C18186771Tritech-MOS · TO-220AB | Tritech-MOS | TO-220AB | 150 | ₹75.24 · 150 in stock | View | |
 | LWT1H13A8#C54221174Lewa Micro · TO-220AB | Lewa Micro | TO-220AB | 19 | ₹69.02 · 19 in stock | View |
 | SP010N15GTQ#C49257219Siliup · TO-220-3L | Siliup | TO-220-3L | 1,920 | ₹25.39 · 1,920 in stock | View |
