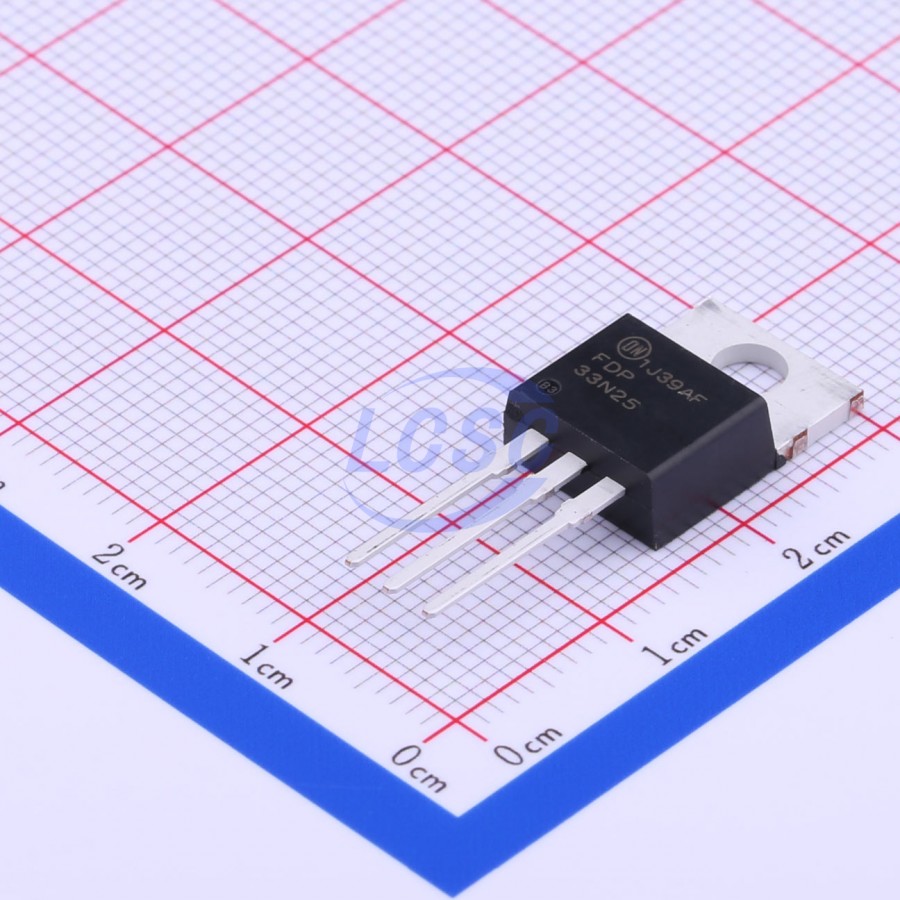

FDP33N25
N-Channel 250V 33A 235W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 250V 33A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FDP33N25
- Store part #
- C243046
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C243046
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.05 | ₹261.05 |
| 10+ | ₹227.66 | ₹2,276.60 |
| 30+ | ₹206.85 | ₹6,205.50 |
| 100+ | ₹161.10 | ₹16,110.00 |
| 500+ | ₹151.34 | ₹75,670.00 |
| 1,000+ | ₹147.22 | ₹1,47,220.00 |
1 × ₹261.05
₹261.05
excl. GST
₹308.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDP33N25
₹261.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 2.135nF
- Pd - Power Dissipation
- 235W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 33A
- Reverse Transfer Capacitance (Crss)
- 59pF
- RDS(on)
- 94mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
UniFETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on-state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- PDP TV
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
Key features
- RDS(on)=94 mΩ (Max.) @ VGS = 10 V, ID = 16.5 A
- Low Gate Charge (Typ. 36.8 nC)
- Low Crss (Typ. 39 pF)
- 100% Avalanche Tested
