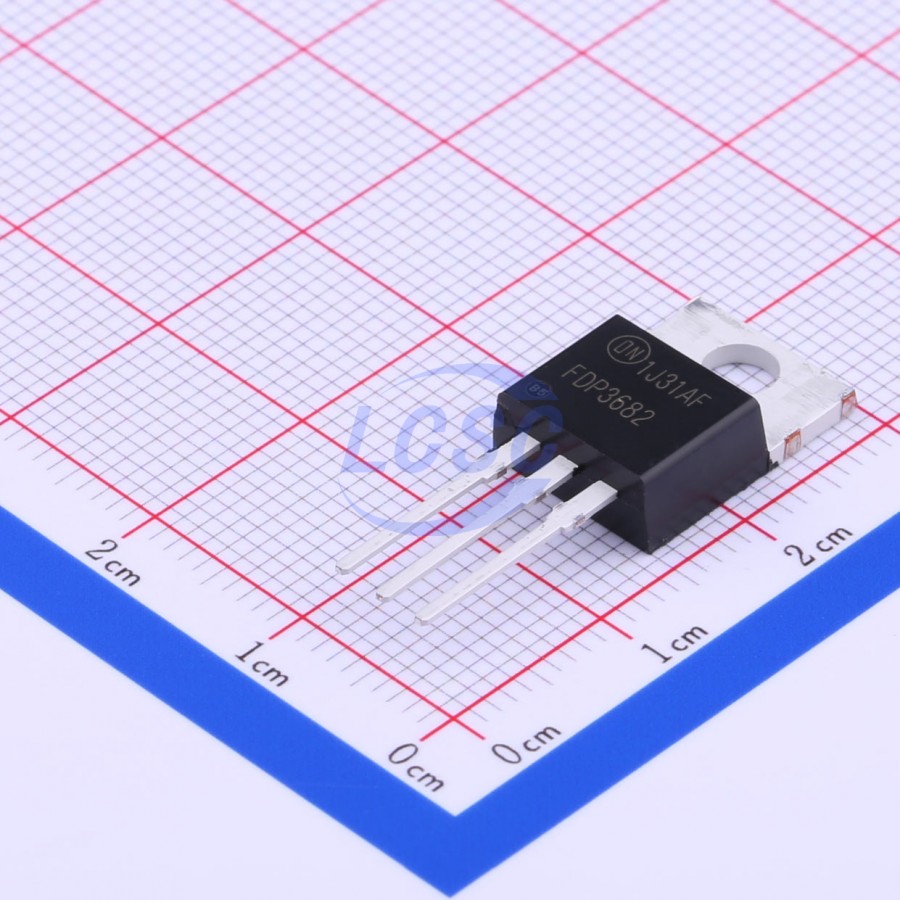

FDP3682
N-Channel 100V 32A 95W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 32A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FDP3682
- Store part #
- C243049
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C243049
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹799.36 | ₹799.36 |
| 10+ | ₹733.38 | ₹7,333.80 |
| 50+ | ₹694.26 | ₹34,713.00 |
| 100+ | ₹654.49 | ₹65,449.00 |
| 500+ | ₹636.22 | ₹3,18,110.00 |
| 800+ | ₹628.05 | ₹5,02,440.00 |
1 × ₹799.36
₹799.36
excl. GST
₹943.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDP3682
₹799.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 190pF
- Ciss-Input Capacitance
- 1.25nF
- Pd - Power Dissipation
- 95W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 32A
- Reverse Transfer Capacitance (Crss)
- 45pF
- RDS(on)
- 36mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.68 g
Overview
This P-channel MOSFET utilizes an advanced PowerTrench process featuring a robust gate structure. It is optimized for power management applications requiring a wide gate drive voltage rating (4.5V - 25V).
Applications
- Consumer Appliances
- Synchronous Rectification
- Battery Protection Circuit
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
Key features
- RDS(on)=32 mΩ (Typ.) @ VGS=10 V, ID=32 A
- QG(tot)=18.5 nC (Typ.) @ VGS=10 V
- Low Miller Charge
- Low Qrr Body Diode
- UIS Capability (Single Pulse and Repetitive Pulse)
