onsemiDatasheet (PDF)

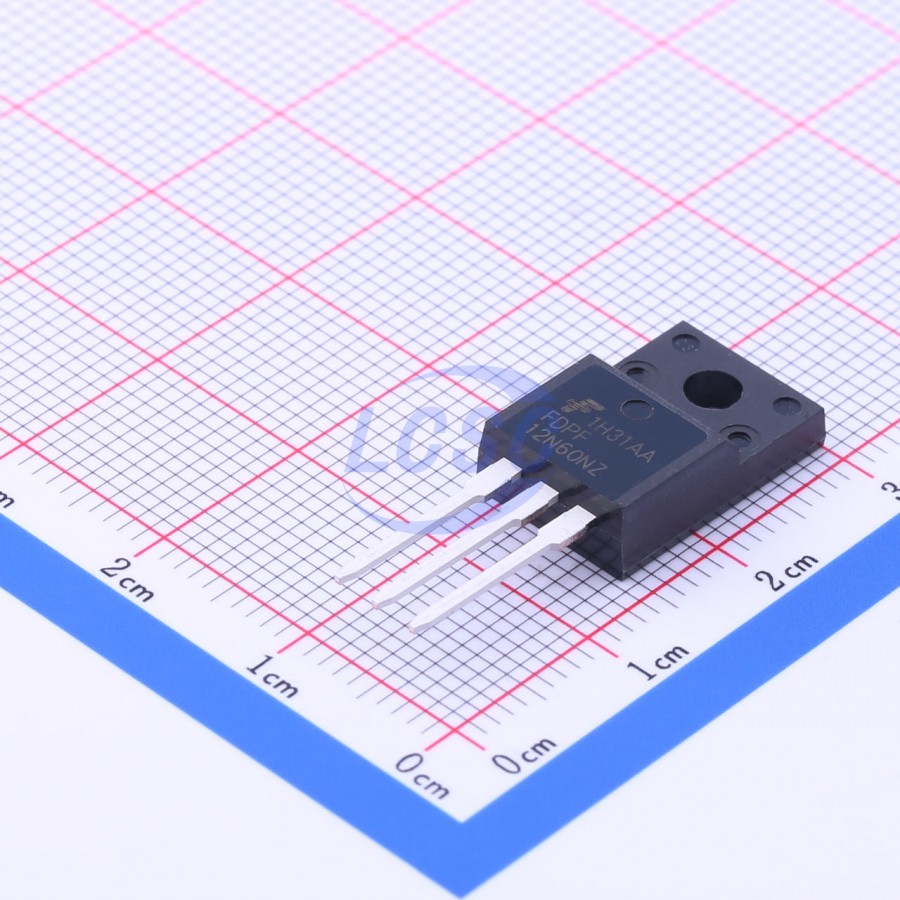

FDPF12N60NZ
N-Channel 600V 12A 39W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 600V 12A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- FDPF12N60NZ
- Store part #
- C36638
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
400 in stock
#C36638
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹325.21 | ₹325.21 |
| 10+ | ₹278.44 | ₹2,784.40 |
| 50+ | ₹233.63 | ₹11,681.50 |
| 100+ | ₹203.61 | ₹20,361.00 |
| 500+ | ₹189.90 | ₹94,950.00 |
| 1,000+ | ₹184.03 | ₹1,84,030.00 |
1 × ₹325.21
₹325.21
excl. GST
₹383.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDPF12N60NZ
₹325.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 200pF
- Ciss-Input Capacitance
- 1.676nF
- Pd - Power Dissipation
- 39W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.89 g
Overview
UniFETTM II MOSFET is a high voltage MOSFET family based on advanced planar stripe and DMOS technology. This advanced MOSFET family has the smallest on-state resistance among the planar MOSFET, and also provides superior switching performance and higher avalanche energy strength. In addition, internal gate-source ESD diode allows UniFET II MOSFET to withstand over 2kV HBM surge stress. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Applications
- LCD/ LED/ PDP TV
- Lighting
- Uninterruptible Power Supply
Key features
- RDS(on) = 530 mΩ (Typ.) @ ID = 6 A
- Low Gate Charge (Typ. 26 nC)
- Low Crss (Typ. 12 pF)
- 100% Avalanche Tested
- Improved dv/dt Capability
- ESD Improved Capability
- RoHS Compliant
