onsemiDatasheet (PDF)

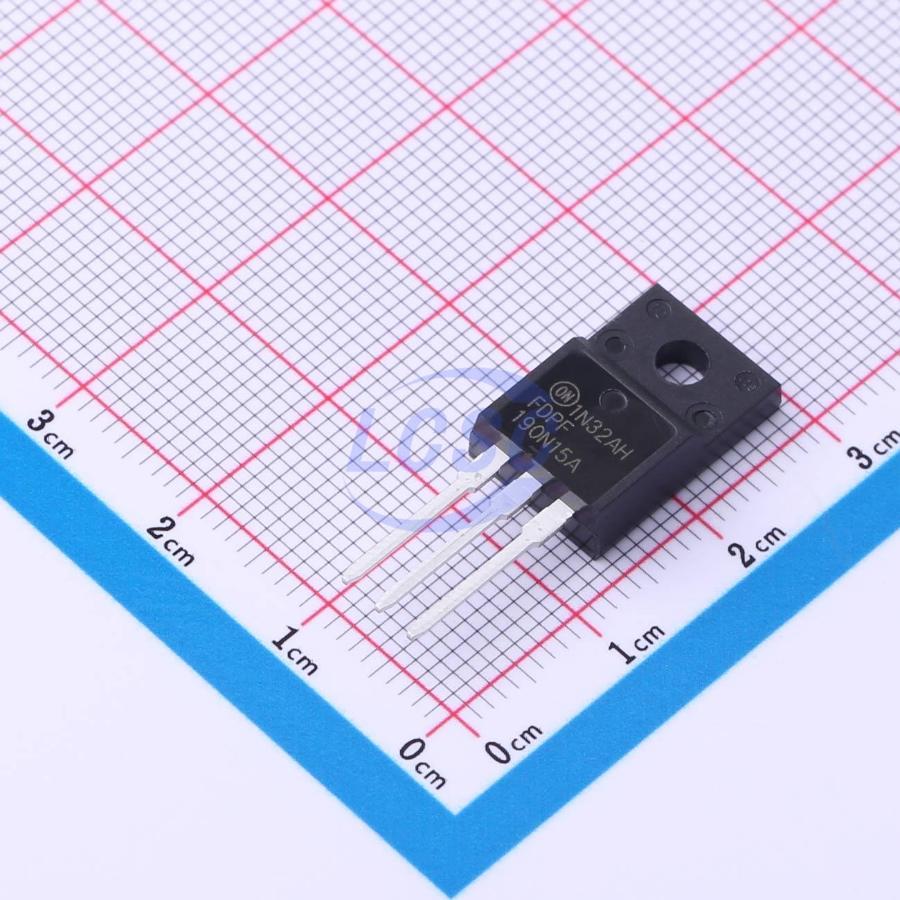

FDPF190N15A
N-Channel 150V 27.4A 33W Through Hole TO-220F
TO-220FROHS3 CompliantActive
MOSFET N-CH 150V 27.4A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- FDPF190N15A
- Store part #
- C605056
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C605056
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹370.06 | ₹370.06 |
| 10+ | ₹362.03 | ₹3,620.30 |
| 50+ | ₹316.40 | ₹15,820.00 |
| 100+ | ₹310.96 | ₹31,096.00 |
1 × ₹370.06
₹370.06
excl. GST
₹436.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDPF190N15A
₹370.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 700pF
- Ciss-Input Capacitance
- 2.685nF
- Pd - Power Dissipation
- 33W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 27.4A
- Reverse Transfer Capacitance (Crss)
- 56pF
- RDS(on)
- 14.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Applications
- Consumer Appliances
- LED TV Synchronous Rectification for ATX / Sever / Telecom PSU
- Uninterruptible Power Supply
- Micro Solar Inverter
Key features
- RDS(on)=14.7 mΩ (Typ.) @ VGS=10 V, ID=27.4 A
- Low Gate Charge, QG=31 nC (Typ.)
- Low Crss (Typ. 56 pF)
- Fast Switching Speed
- Improved dv/dt Capability
- RoHS Compliant
