onsemiDatasheet (PDF)

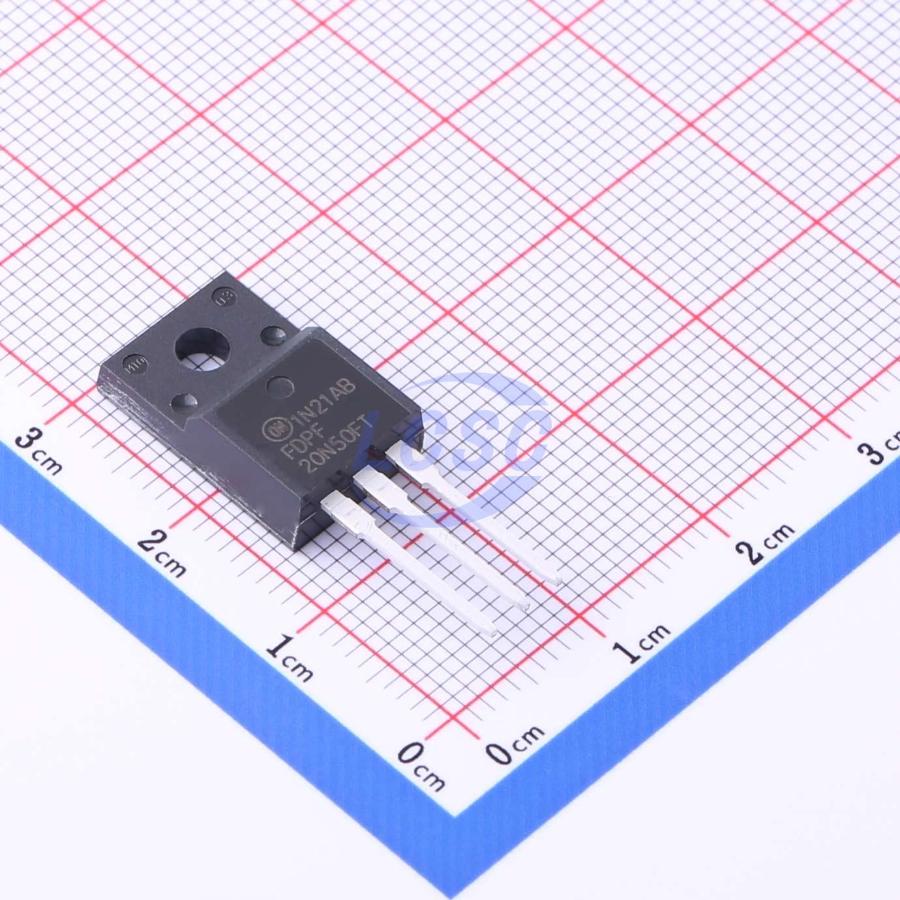

FDPF20N50FT
38.5W 500V 20A 260mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
MOSFET N-CH 500V 20A TO-220
- Manufacturer
- onsemi
- Manufacturer part #
- FDPF20N50FT
- Store part #
- C556443
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C556443
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹844.92 | ₹844.92 |
| 10+ | ₹747.77 | ₹7,477.70 |
| 50+ | ₹663.30 | ₹33,165.00 |
| 100+ | ₹605.06 | ₹60,506.00 |
| 500+ | ₹577.98 | ₹2,88,990.00 |
| 1,000+ | ₹565.94 | ₹5,65,940.00 |
1 × ₹844.92
₹844.92
excl. GST
₹997.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDPF20N50FT
₹844.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 350pF
- Ciss-Input Capacitance
- 3.39nF
- Pd - Power Dissipation
- 38.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 260mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.21 g
Overview
Applications
- LCD/LED/PDP TVs
- Lighting
- Uninterruptible Power Supplies
- AC-DC Power Supplies
Key features
- R<sub>DS(on)</sub> = 210 mΩ (typ.) at V<sub>GS</sub> = 10 V, I<sub>D</sub> = 10 A
- Low gate charge (50 nC typ.)
- Low reverse transfer capacitance (27 pF typ.)
- 100% avalanche tested
- Improved dv/dt capability
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDP20N50F#C899149onsemi · TO-220 | onsemi | TO-220 | 1,074 | ₹395.34 · 1,074 in stock | View |
 | WGP20N50SE#C7541377Wild Goose · TO-220 | Wild Goose | TO-220 | 284 | ₹88.28 · 284 in stock | View |
 | WSR20N60#C20608582Winsok Semicon · TO-220 | Winsok Semicon | TO-220 | On request | ₹273.36 · 0 in stock | View |
 | CMP20N50A#C55158716Cmos · TO-220 | Cmos | TO-220 | 170 | ₹97.89 · 170 in stock | View |
 | CMP20N50#C52118378Cmos · TO-220 | Cmos | TO-220 | 190 | ₹147.61 · 190 in stock | View |
