onsemiDatasheet (PDF)

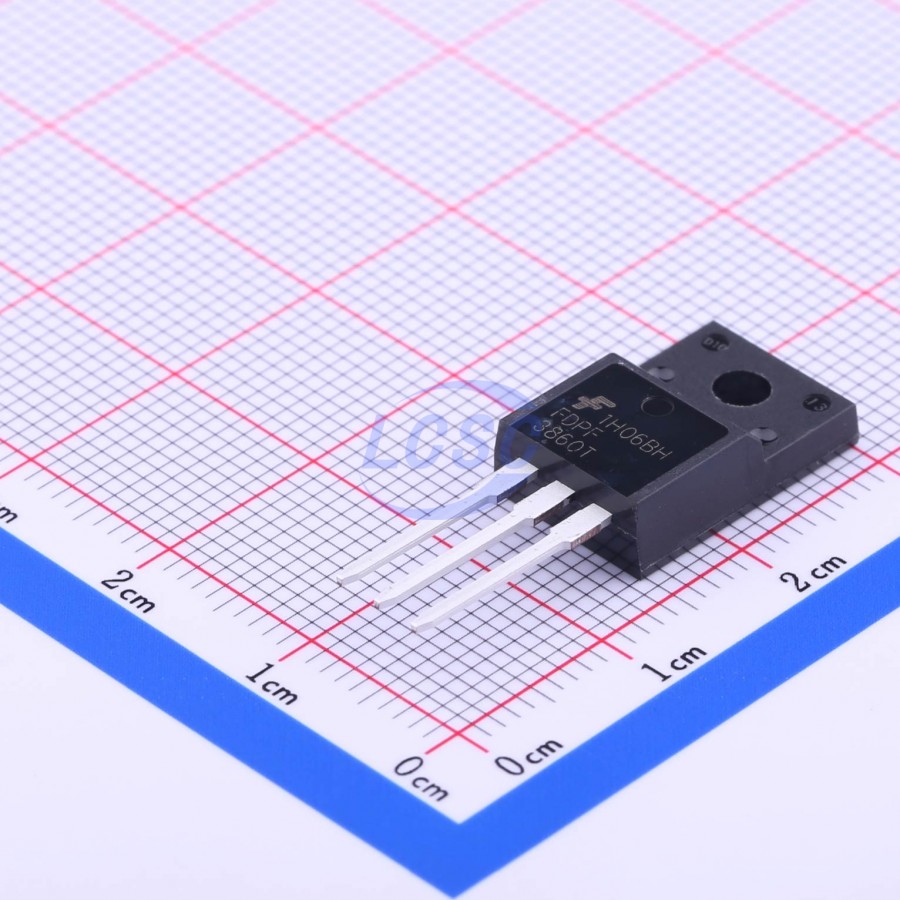

FDPF3860T
N-Channel 100V 20A 33.8W Through Hole TO-220F
TO-220FROHS3 CompliantDiscontinued
MOSFET N-CH 100V 20A TO-220F
- Manufacturer
- onsemi
- Manufacturer part #
- FDPF3860T
- Store part #
- C243063
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
158 in stock
#C243063
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.59 | ₹214.59 |
| 10+ | ₹178.10 | ₹1,781.00 |
| 30+ | ₹158.34 | ₹4,750.20 |
| 100+ | ₹135.75 | ₹13,575.00 |
| 500+ | ₹125.76 | ₹62,880.00 |
| 1,000+ | ₹121.20 | ₹1,21,200.00 |
1 × ₹214.59
₹214.59
excl. GST
₹253.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FDPF3860T
₹214.59 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 190pF
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 33.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 38.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resistance while maintaining superior switching performance.
Applications
- Consumer Appliances
- LCD/LED/PDP TV
- Synchronous Rectification
- Uninterruptible Power Supply
- Micro Solar Inverter
Key features
- RDS(on) = 29.1 mΩ (Typ.) @ VGS = 10 V, ID = 5.9 A
- Fast Switching Speed
- Low Gate Charge
- High Performance Trench Technology for Extremely Low RDS(on)
- High Power and Current Handling Capability
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
